XYR-GA-BSMA-LY-140H-300x300-RTLA-30-100
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.

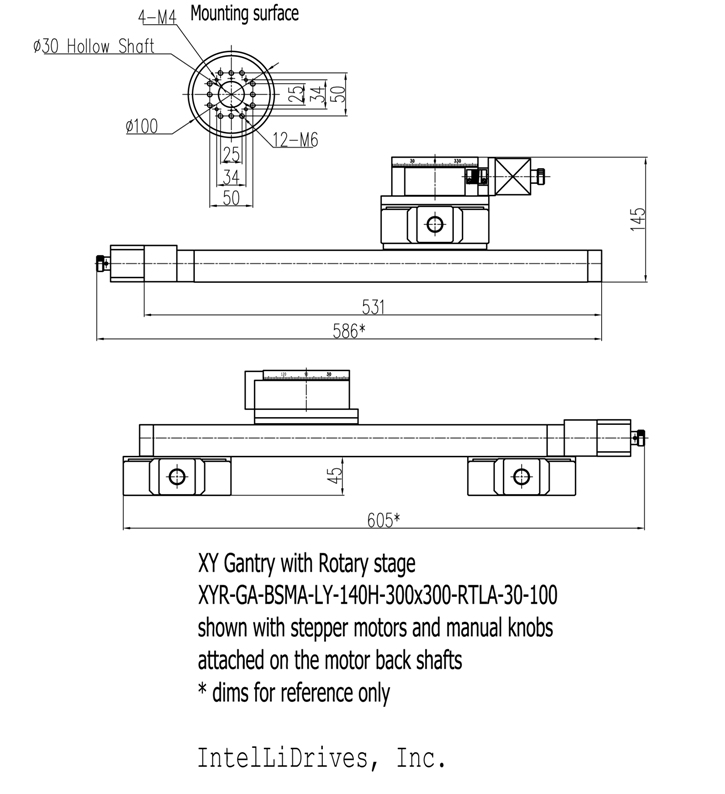

Combination of XY ball screw driven BSMA-LY-140H stages and worm gear rotary RTLA-30-100 table

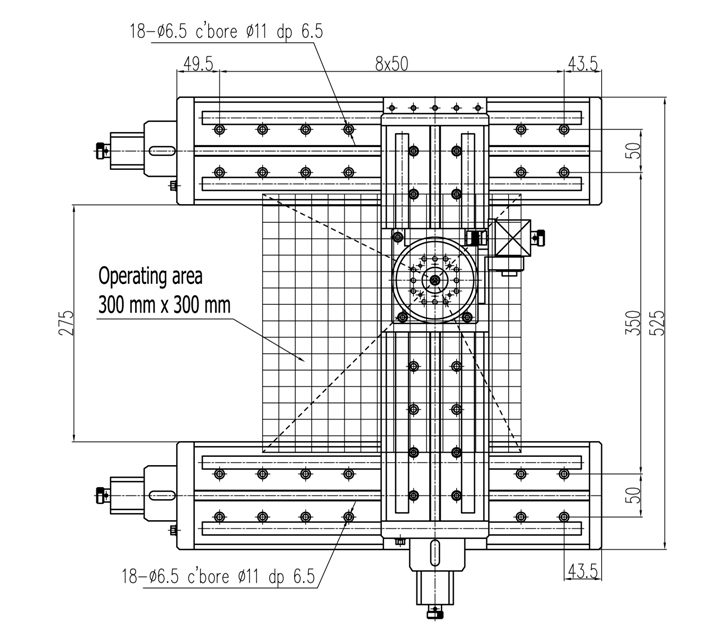

- XY stroke 300x300 mm
- Unlimited rotation
Click Below Images To Enlarge
|
XY stage |
Spec |
Rotary Stage |
Spec |
|
Stroke (mm) |
300 x 300 |
Rotation |
unlimited |
|
Repeatability (µm) |
±10 |
Repeatability (arc-sec) |
36 |
|
Resolution (µm) |
1 |
Resolution (arc-sec) |
|
|
2Load capacity (kg) |
10 |
Torque (Nm) |
0.5 |
|
Velocity (mm/sec) |
100 (servo/encoder) |
Angular velocity (rpm) |
5 |
|
Mechanism, screw lead (mm) |
ball-screw, 4 |
Mechanism, ratio |
worm gear 180:1 |
|
Motor |
stepper/servo |
Motor |
stepper/servo |
