Lift-Rotary ZR-BSMA-LY-140H-100-RTLA-30-100
Lift-Rotary stage offer precise and independent rotation and vertical translation for light to medium payload.

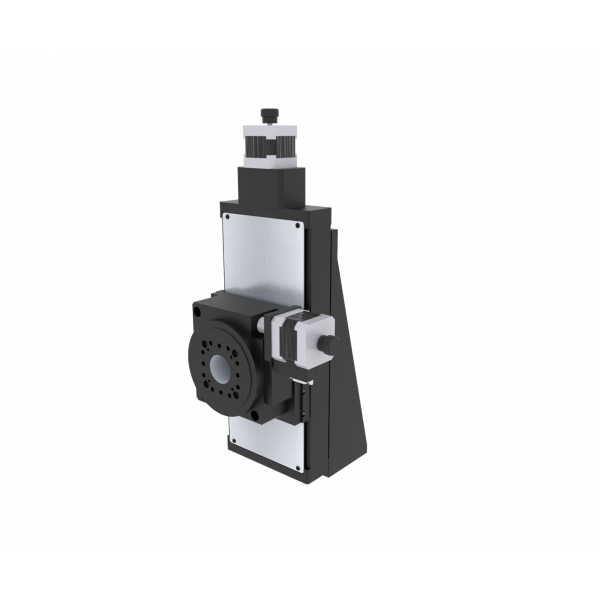

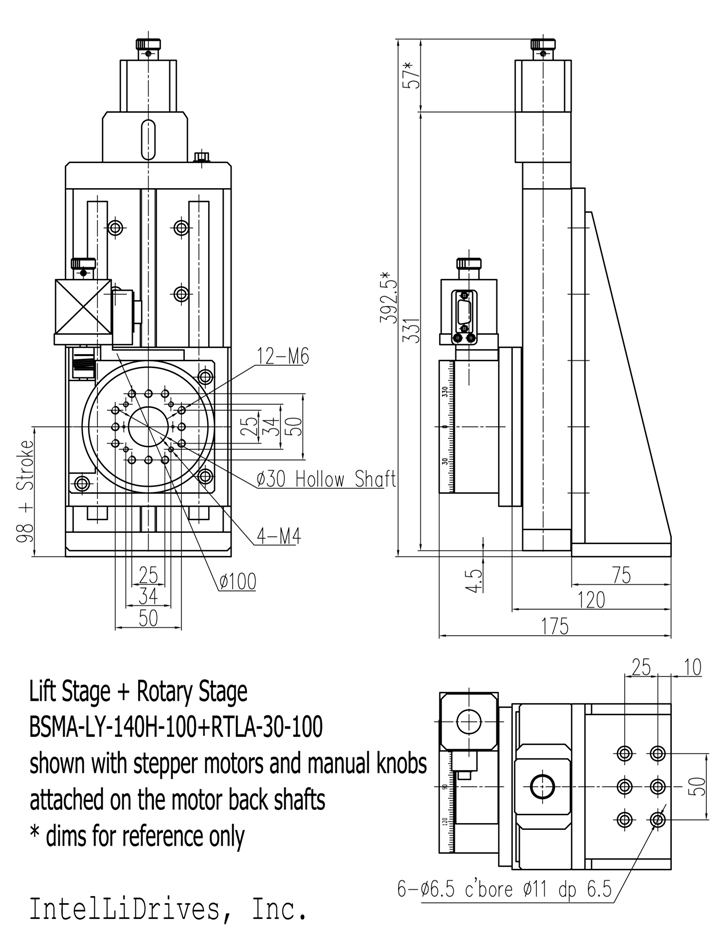

This stage combines BSMA-LY-140H-100 as vertical stage and rotary table RTLA-30-100 in very compact form factor for precision space constrained applications.
Lift Z Stage BSMA-LY-140H-100 |
Spec |
Rotary Stage RTLA-30-100 |
Spec |
Lift stroke |
100 mm |
Rotation |
unlimited |
Repeatability |
± 10 µm |
Repeatability |
± 36 arc-sec |
Resolution |
1 µm |
Resolution |
1 arc-sec |
Lift velocity |
100 mm/sec |
Angular velocity |
5 rpm |
Mechanism |
ball screw |
Mechanism |
worm gear 180:1 |
Motor |
stepper/servo |
Motor |
stepper/servo |
