Lift-Rotary MLVT-70-13+RTHM-151
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.

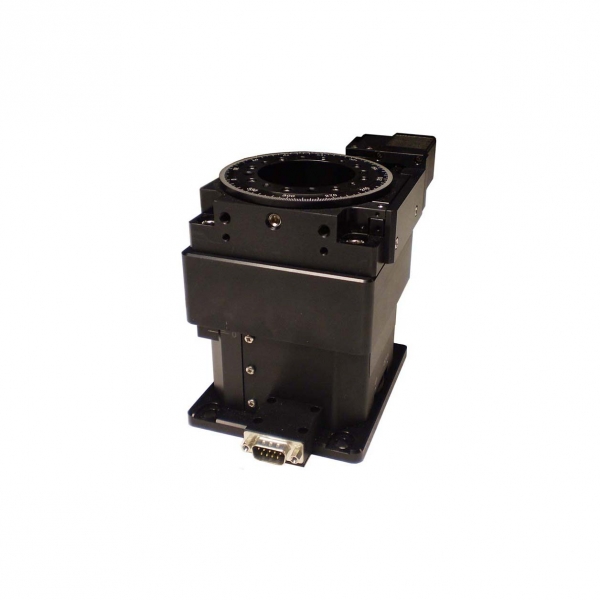

Lift-Rotate stages offer precise and independent rotation and vertical translation for light to medium payload.

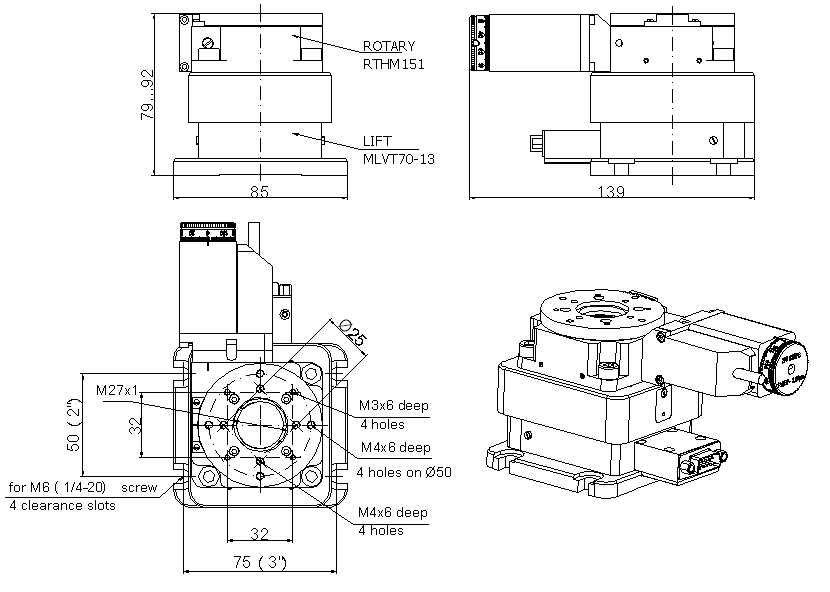

This stage combines MLVT vertical stage and RTHM rotary table in very compact form factor for precision space constrained applications.
Click Below Images To Enlarge
.jpg)
 Lift-Rotary L140-10+R140 L140-10+R140 Lift 10 mm Air bearings Load 8 Kg |
 Lift-Rotary MLVT-100-25+RTHM-190 MLVT-100-25-RTHM-190 Lift 25 mm Ball bearings Load 8 Kg |
 Lift-Rotary MLVT-40-13+RTHM-174 MLVT-40-13-RTHM-174 Lift 13 mm Ball Bearings Load 3 Kg |
 Lift-Rotary MLVT-120-5+SRT-01 MLVT-120-5-SRT-01 Lift 5 mm Ball bearings Load 10 Kg |
 Lift-Rotary L90-12+R100 L90-12+R100 Lift 12 mm Air bearings Load 4 Kg |
|
Lift Z Stage MLVT-70-13 |
Spec |
Rotary Stage RTHM-151 |
Spec |
|
|
|
|
|
|
Lift stroke |
13 mm |
Rotation |
unlimited |
|
Repeatability |
± 2 µm |
Repeatability |
± 20 arc-sec |
|
Resolution |
1 µm |
Resolution |
± 1 arc-sec |
|
Lift payload |
5 kg |
Torque |
0.2 Nm |
|
Lift velocity |
20 mm/sec |
Angular velocity |
5 rpm |
|
Mechanism |
direct drive screw |
Mechanism |
worm drive |
|
Motor |
stepper |
Motor |
stepper |
