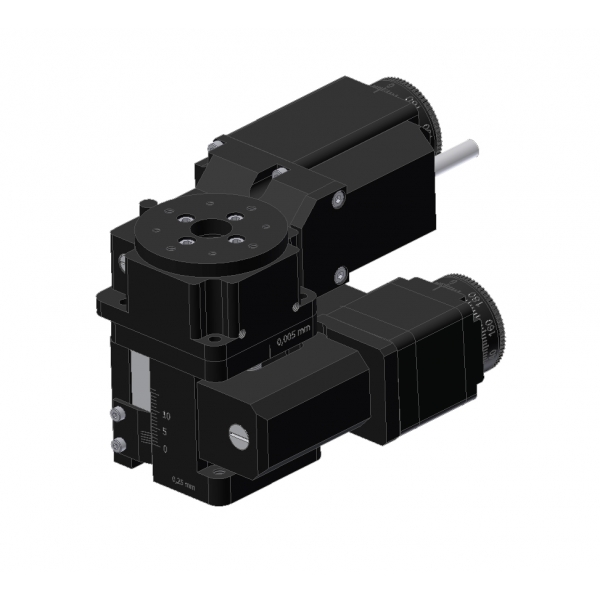

Lift-Rotary MLVT-40-13+RTHM-174

Click to enlarge

Send Quote/Information Request

When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

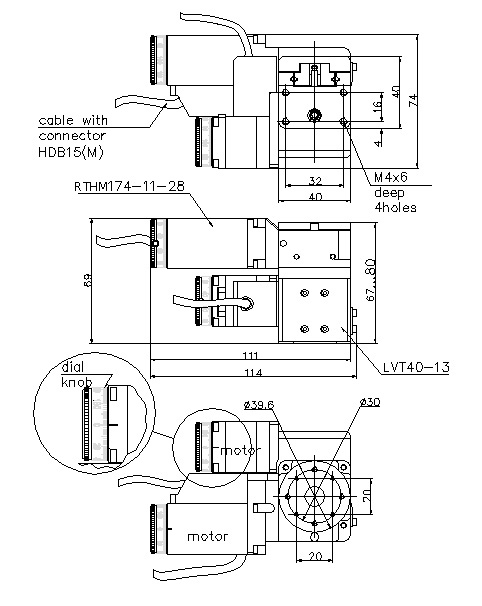

Description Specifications Drawings Related

Lift-Rotate stages offer precise and independent rotation and vertical translation for light to medium payload.

This stage combines MLVT vertical stage and RTHM rotary table in very compact form factor for precision space constrained applications.

Click Below Images To Enlarge

VERTICAL LIFT 13 mm

UNLIMITED ROTATION

There are no related products for this product.

Lift Z Stage MLVT-40-13	Spec	Rotary Stage RTHM-174	Spec

Lift stroke	13 mm	Rotation	unlimited
Repeatability	± 0.5 µm	Repeatability	± 10 arc-sec
Resolution	0.005 µm	Resolution	± 1 arc-sec
Lift payload	3 kg	Torque	0.5 Nm
Lift velocity	2 mm/sec	Angular velocity	12 rpm
Mechanism	direct drive screw	Mechanism	worm gear
Motor	stepper	Motor	stepper
