Lift-Rotary LSZ12W+PSR150-30

Click to enlarge

Send Quote/Information Request

When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

Description Specifications Drawings Related

Lift-Rotate stages offer precise and independent rotation and vertical translation for light to medium payload.

This stage combines LSZ-12W vertical stage and PSR150-30 rotary table in very compact form factor for precision space constrained applications.

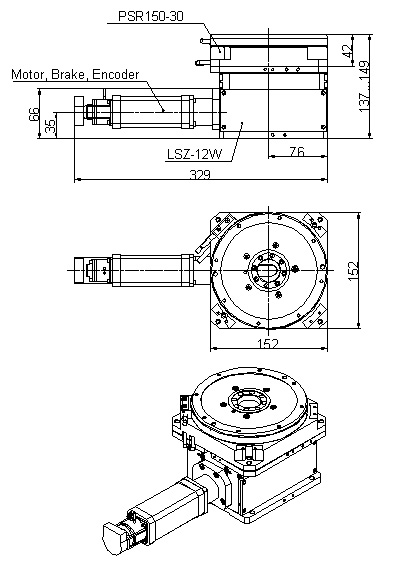

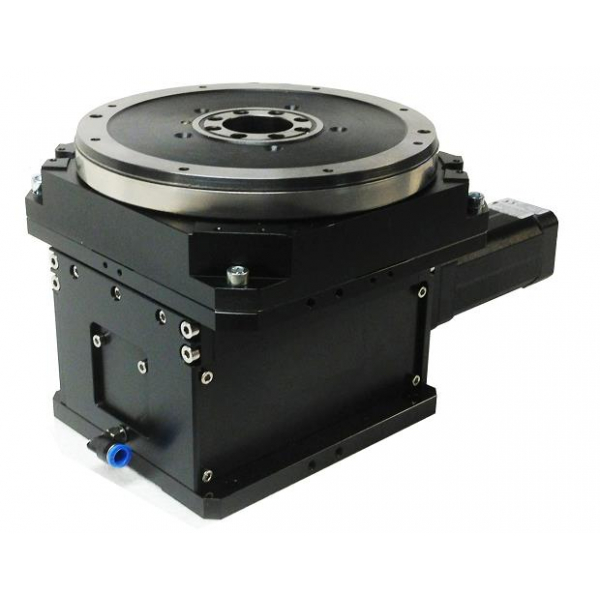

Click Below Images To Enlarge

There are no related products for this product.

Lift Z Stage LSZ12W	Spec	Rotary Stage PSR150-30	Spec

Lift stroke	12 mm	Rotation	unlimited
Repeatability	± 2 µm	Repeatability	± 2 arc-sec
Resolution	1 µm	Resolution	± 2 arc-sec
Lift payload	10 kg	Torque	6 Nm
Lift velocity	25 mm/sec	Angular velocity	180 rpm
Mechanism	ball screw /wedge	Mechanism	direct drive
Motor	servo	Motor	servo
