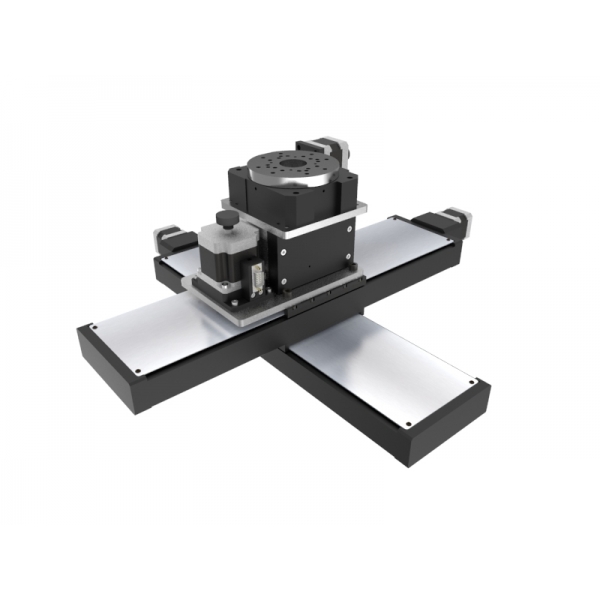

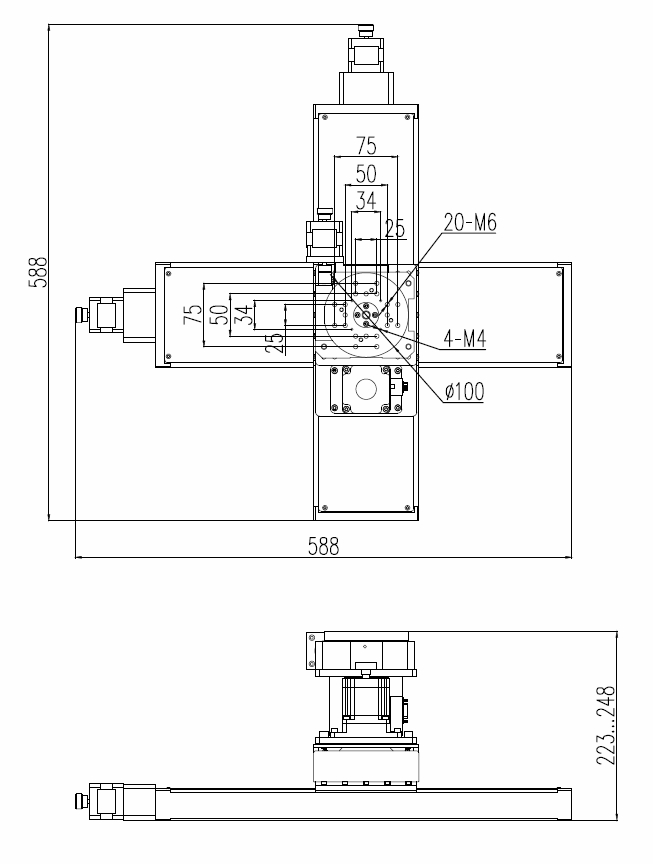

XY-LY-140H-300x300-MLVT-25J-RTLA-30-100HJ
Combination of XY ball-screw driven BSMA XY stages with Lift MLVT stages and compact worm gear rotary RTLA table
- XY stroke 300x300 mm
- Lift 25 mm
- Unlimited rotation
 Lift LSMA-200+XY LSMA167-25x25 Lift-200+XY25x25 Lift stroke 100 mm XY stroke 25 x 25 mm Rotary stage optional Load 4 Kg
|
 XYZR LSMA-200x200+MLVT100-25+RTHM190 LSMA200+MLVT25-RTHM190 XY Stroke 200x200 mm Lift stroke 25 Rotation unlimited Load 10 Kg |
 XYZR LSMA-100x100+MLVT70-13+RTHM151 LSMA100+MLVT13+RTHM151 XY Stroke 100x100 mm Lift stroke 13 Rotation unlimited Load 5 Kg |
 XYZR BSMA-750x750+LSZ12W+PSR150-30 XYZR-BSMA+LSZ12+PSR150 XY Stroke 750x250 mm Lift stroke 12 mm Rotation unlimited Load 10 Kg |
 XYZR-BSMA-LY-110H-30x30x30+RTLA-0-60 110H-30x30x30+RTLA-0-60 XYZ stroke 30x30x30 mm Rotation unlimited Load 2 Kg |
 XYZR-BSMA-LY-110-50x50x50+RTLA-0-60 110-50x50x50+RTLA-0-60 XYZ stroke 50x50x50 mm Rotation unlimited Load 2 Kg |
XYZR-BSMA-LY-110-75x75x75+RTLA-0-60 110-75x75x75+RTLA-0-60 XYZ stroke 75x75x75 mm Rotation unlimited Load 2 Kg |
 XYZR-BSMA-LY-110-50x50x50+RTLA-30-100 110-50x50x50+RTLA-30-100 XYZ stroke 50x50x50 mm Rotation unlimited Load 3 Kg |
| XYZR-BSMA-LY-110-75x75x75+RTLA-30-100 110-75x75x75+RTLA-30-100 XYZ stroke 75x75x75 mm Rotation unlimited Load 3 Kg |
 XYZR-BSMA-LY-140H-100x100x100+RTLA-30-100 100x100x100+RTLA-30-100 XYZ stroke 100x100x100 mm Rotation unlimited Load 3 Kg |
 XYZR-BSMA-LY-140H-200x200x200+RTLA-30-100 200x200x200+RTLA-30-100 XYZ stroke 200x200x200 mm Rotation unlimited Load 3 Kg |
 XYZR-BSMA-LY-140H-300x300x300+RTLA-30-100 300x300x300+RTLA-30-100 XYZ stroke 300x300x300 mm Rotation unlimited Load 3 Kg |
 XYZR-OG-LOW-BSMA-LY-140H-300x300-LY-110-50-RTLA-30-100 XYZROG-300x300x50-R30100 XYZ stroke 300x300x50 mm Rotation unlimited Load 3 Kg |
 XYZR Gantry BEMA-W60-1000x1000x220x360 XYZR Gantry BEMA-W60-1000x1000x300x360 Stroke XYZ 1000x1000x220 mm Load 30 kg (XY), 3 kg (Z-R) |
 XYZR-BSMA-058U-120x120-LSZ-8S-ACR-32UT XYZR-BSMA-058U-120x120-LSZ-8S-ACR32UT XYZ stroke 120x120x8 mm Load vertical 3 Kg |
 XYZ-BSMA-LY-140H-300x300-MLVT-25J XYZ-BSMA-LY-140H-300x300-MLVT-25J XYZ stroke 300x300x25 mm Load vertical 12 Kg |
|
XY stage BSMA-LY-140H-300x300 |
Spec |
Lift Stage MVLT-25J |
Spec |
Rotary Stage RTLA-30-100HJ |
Spec |
|
Stroke (mm) |
300 x 300 |
Lift (mm) |
25 |
Rotation |
unlimited |
|
Repeatability (µm) |
10 |
Repeatability (µm) |
10 |
Repeatability (arc-sec) |
20 |
|
Resolution (µm) |
Motor and driver dependent |
Resolution (arc-sec) |
Motor and driver dependent |
Load (kg) |
30 |
|
Load capacity (kg) |
16 |
Lift translation (mm/rev) |
1 |
Weight (kg) |
1.8 |
|
Velocity (mm/sec) |
25 (servo) |
Max velocity (mm/sec) |
40 |
Angular velocity (rpm) |
15 |
|
Mechanism, screw lead (mm) |
ball-screw 4 |
Mechanism, screw lead (mm) |
belt 1 |
Mechanism, ratio |
worm gear 45:1 |
|
Motor |
stepper servo |
Motor |
stepper/servo/encoder/ Smart |
Motor |
stepper servo |
