Roto-Linear Actuators RLTX-40

Click to enlarge

Send Quote/Information Request

When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

Description Specifications Drawings Related

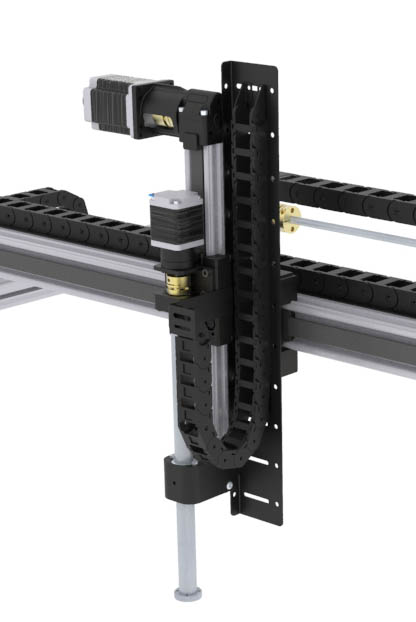

Linear-Rotary combination stage offer precise and independent rotation and linear translation for light loads

This stage combines BEMA-W40 linear actuators with rotation mechanism in very compact form factor for precision space constrained applications.

Used as 3rd and 4th axes in XYZR large area gantries

There are no drawings for this product.

There are no related products for this product.

Linear Stage BEMA-W40	Spec	Rotary Stage RW40	Spec
Linear stroke	70, 120, 170, 220, 270,320 mm	Rotation	unlimited
Load	3 Kg	Load	3 Kg
Repeatability	± 50	Repeatability	± 60
Resolution	25	Resolution	30
Linear velocity	500 mm/sec	Angular velocity	150 rpm
Mechanism	belt, lead equivalent 75 mm	Mechanism	gear 63:17
Motor	stepper	Motor	stepper
