Linear actuator IDK28-100-SLIDE
-600x600.jpg "motorized electric actuator")
Motorized precision actuators offer up to 100 mm travel range. Precision motion is accomplished by a miniature stepper motor providing sub-micron resolution. Precision fine pitch screw mechanism converts rotation of the motor shaft into linear travel while avoiding backlash inside the system. This provides very responsive motion with trust force of 70 N and low friction. These actuators are offered in multiple travel ranges with limit switches at both ends of the travel.
- Stepper motor driven
- Motorized screws design
- moving slide
- Built-in limit sensors

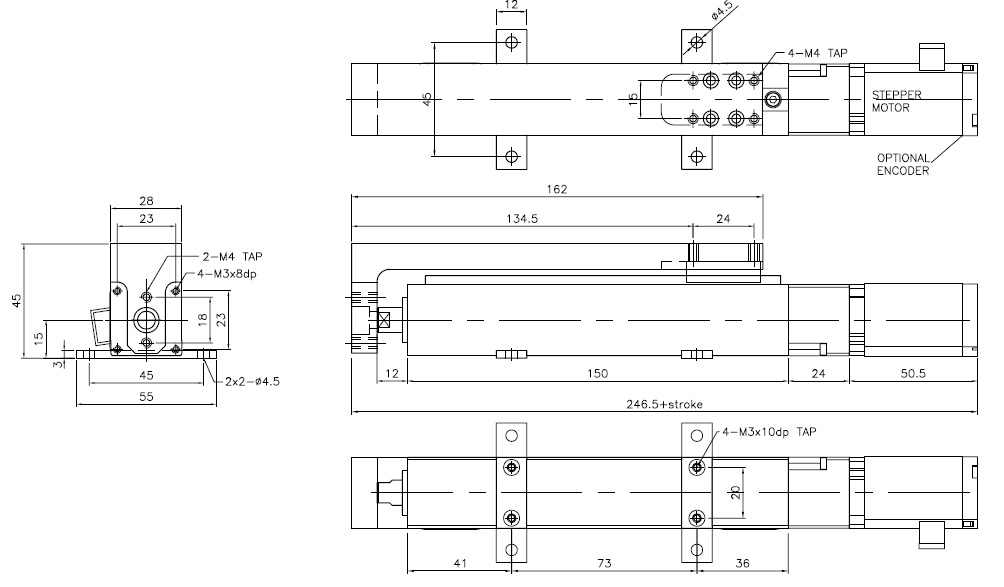

.jpg)
 Linear actuator MLA-MS00 MLA-MS00 Stroke 10, 25 mm Length 79 mm WxH 28x43 mm Force 30, 60N |
 Linear actuator MLA-CMA06 MLA-CMA06 Stroke 13, 25 mm Length 87, 101 mm WxH 20x26 mm Force 30N |
 Linear actuator MLA-CMA28 MLA-CMA28 Stroke 10 mm Length 114 mm WxH 33x28 mm Force 70N |
 Linear actuator MLA-CMA20 MLA-CMA20 Stroke 8 mm Length 79 mm WxH 23x25 mm Force 30N |
 Linear actuator MLA-CMA42 MLA-CMA42-50 Stroke 50 mm Length 207 mm WxH 34x52 mm Force 200 N |
-120x120.jpg "Linear actuator IDK28-60ST") Linear actuator IDK28-60ST IDK28-60ST Stroke 60 mm Length 180 mm WxH 28x28 mm Force 70 N |
Linear actuator IDK28-100ST IDK28-100ST Stroke 100 mm Length 180 mm WxH 28x28 mm Force 70 N |
-120x120.jpg "Linear actuator IDK28-60-SLIDE") Linear actuator IDK28-60-SLIDE IDK28-60-SLIDE Stroke 60 mm Length 180 mm WxH 28x45 mm Force 70 N |
| Parameter | Unit |
IDK28-100-SLIDE |
|
Stroke |
mm |
100 |
|
Screw lead |
mm | 2 |
|
Repeatability |
micron | 20 |
|
Motor (note 1) |
|
Stepper Nema 11 |
|
Speed (note 2) |
mm/sec | 40 |
|
Load |
N | 30 ...70 (note 1) |
|
Limit switches |
2 | |
|
Stage weight |
kg | 0.5 |
Note 1: Load and drive voltage dependent
Note 2:
Max load 3 kg when load is on the slide front
Max load 7 kg when load is on the slide rear
Max load 5 kg in vertical trust
Max load 7 kg in horizontal trust
