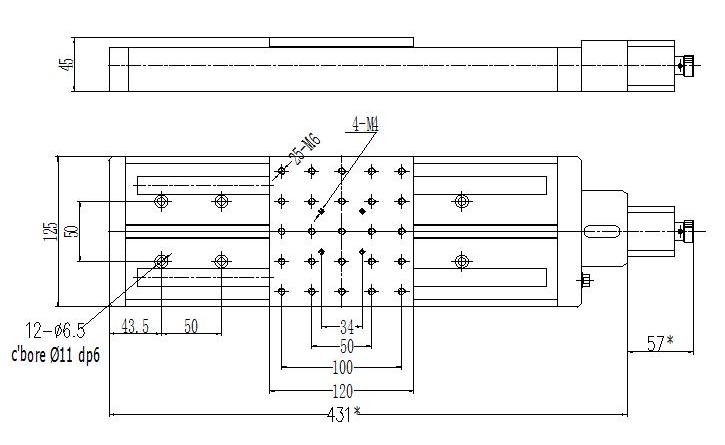

Linear Actuator BSMA-140H-200
Low profile motorized actuators with precision ball screw provide exceptional accuracy, repeatability and ultra-fine positioning resolution capability to 1 micron in a very compact, low profile unit. They are ideal for space-critical applications such as optical, laser applications
 Linear Actuator BSMA-140H-50 X-BSMA-LY-140H-50 Stroke 50 mm Cross-section 125x45 mm (WxH) Load - 15 Kg Repeatability - 10 microns |
Linear Actuator BSMA-140H-100 X-BSMA-LY-140H-100 Stroke 100 mm Cross-section 125x45 mm (WxH) Load - 15 Kg Repeatability - 10 microns |
 Linear Actuator BSMA-140H-150 X-BSMA-LY-140H-150 Stroke 150 mm Cross-section 125x45 mm (WxH) Load - 15 Kg Repeatability - 10 microns |
Linear Actuator BSMA-140H-200 X-BSMA-LY-140H-200 Stroke 200 mm Cross-section 125x45 mm (WxH) Load - 15 Kg Repeatability - 10 microns |
 Linear Actuator BSMA-140H-300 X-BSMA-LY-140H-300 Stroke 300 mm Cross-section 125x45 mm (WxH) Load - 15 Kg Repeatability - 10 microns |
| Actuator |
BSMA-LY-140H |
| Stroke |
200 mm |
| Ball screw lead |
4 mm |
| Motor mounts |
Nema17 |
| Motor type |
stepper servo with encoder (4000cpr) |
| Repeatability |
± 10 microns |
| Load capacity |
15 kg |
| Max screw speed |
10 RPS (stepper) 25 RPS (servo/encoder) |
RPS (rev/sec)
Speed in mm/sec = RPS x screw_lead
