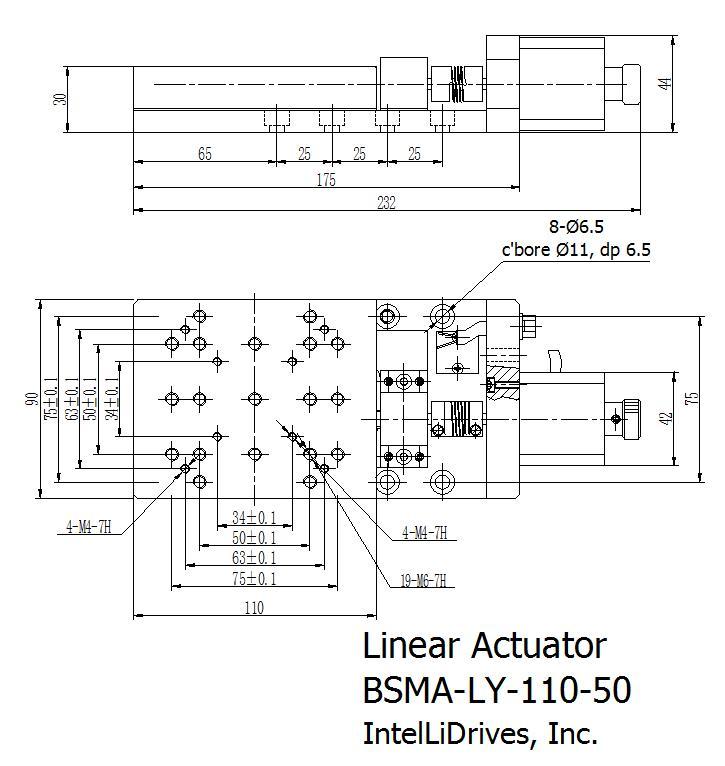

Linear Actuator BSMA-LY-110-50
BSMA-LY-110 miniature linear actuators designed for the space confined applications while retaining the high reliability required in production environments. It is an ideal choice for measurement, testing, alignment and component assembly in any application on the factory floor or laboratory environments.
The precision ball screw or micrometer grade lead screw provide excellent accuracy and repeatability with ultra-fine positioning resolution capability of 0.1 micron when driven by the stepper motor. The servomotor version is equipped with a rotary encoder and provides exceptionally smooth travel.
XY and XYZ configurations available
 Linear actuator LSMA-184 LSMA-184 Width 42 mm Height 21 mm Stroke 13 mm Load 5 Kg |
 Linear actuator LSMA-173 LSMA-173 Width 30 mm Height 28 mm Stroke 5 ... 30 mm Load 5 Kg |
 Linear actuator LSMA-175 LSMA-175 Width 50 mm Height 25 mm Stroke 50 ... 200 mm Load 8 Kg |
 Linear actuator LSMA-167 LSMA-167 Width 117 ... 135mm Height 25 mm Stroke 25, 100 mm Load 30 Kg |
 Linear actuator LSMA-30 LSMA-30 Width 30 mm Height 28 mm Stroke 50 mm Load 5 Kg |
 Linear actuator LSMA-200 LSMA-200 Width 75 mm Height 43 mm Stroke 100 ... 200 mm Load 30 Kg |
 Linear Actuator BSMA-LY-110H-30 X-BSMA-LY-110H-30 Width 60 mm Height 30 mm Stroke 30 mm Load 5 Kg |
 Linear Actuator BSMA-LY-110-15 X-BSMA-LY-110-15 Width 65 mm Height 30 mm Stroke 15 mm Load 5 Kg |
 Linear Actuator BSMA-LY-110-75 X-BSMA-LY-110-75 Width 90 mm Height 30 mm Stroke 75 mm Load 10 Kg |
|
Stroke |
mm |
50 |
|
Screw lead |
mm |
1.0 |
|
Motor mounts size |
|
Nema17 (42mm) |
|
Motor type |
|
Stepper (standard) Servo/encoder 4000cpr |
|
Repeatability |
micron |
± 5 |
|
Load horizontal / vertical |
kg |
10 / 5 |
|
Stage weight |
kg |
1.3 |
|
Speed |
mm/sec |
10 (stepper) 20 (servo) |
Open loop Micro-stepping resolution = screw_lead/200/microsteps_per_step
where:
stepper motor has 200 full steps/rev
driver micro-stepping resolution 64, 128, 256 micro-steps/step
Closed loop servo resolution = screw_lead/encoder_cpr/4
where:
encoder_cpr is number of encoder counts per revolution
4 is post-quad processing in the motion controller
