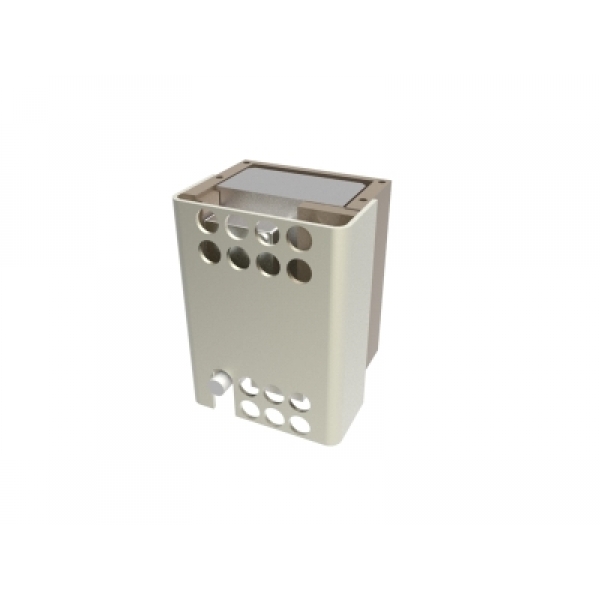

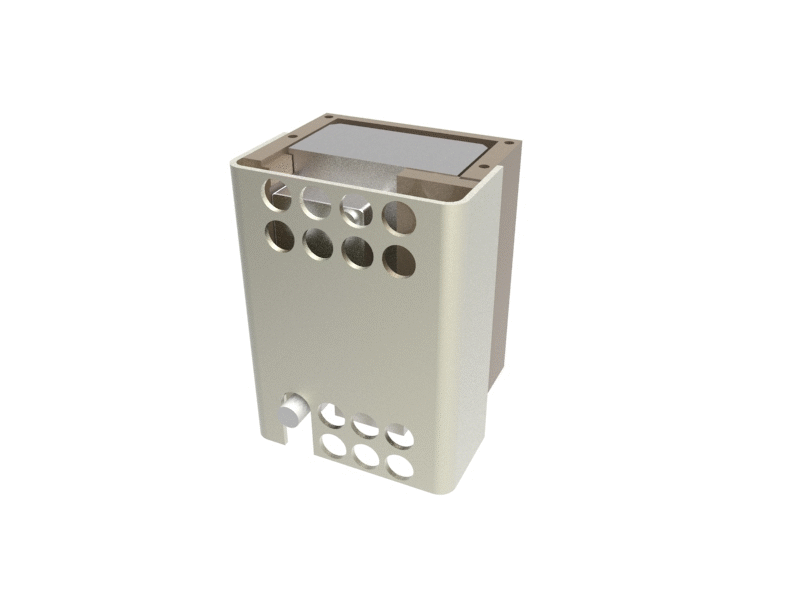

ZLSS-10-60
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.
Direct drive linear motor actuator solution for payload elevation provides micron resolution and repeatability with strokes 10mm.
High-frequency operation.
Click Below Images To Enlarge
 Elevator Stage LSSE-200-850 LSSE-200-850 Lift stroke 1 m Load 20 Kg |
 Elevator stage LSSE-200-1300 LSSE-200-1300 Lift stroke 2 m Load 30 Kg |
 ZLSS-10-30 ZLSS-10-30 Lift stroke 10mm Load 2.5 Kg |
|
Model
|
|
LZSS-10-60
|
||
|
Peak force |
Fp |
N |
90 |
180 |
|
Continuous force |
Fc |
N |
30 |
60 |
|
Max speed at Fp @ 110 VAC |
Vp |
m/sec |
4 |
2 |
|
Accuracy |
|
micron |
25 |
|
|
Resolution |
|
micron |
1 |
|
|
Repeatability |
|
micron |
2 |
|
|
Forcer weight |
|
Kg |
0.3 |
0.4 |
|
Max payload weight |
|
kg |
2.5 |
5 |
|
Max stroke |
|
mm |
10 |
|
|

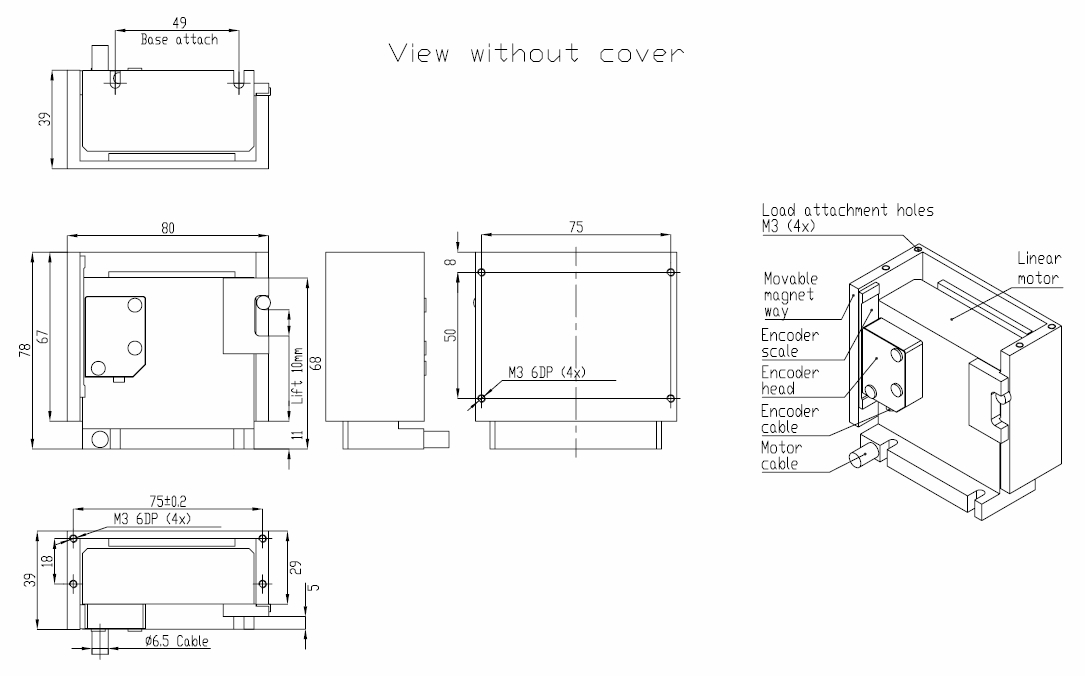

Stage profile (cross-section) |
|
mm |
55x40 |
80x40 |
|
Straightness |
|
m |
0.02 |
|
