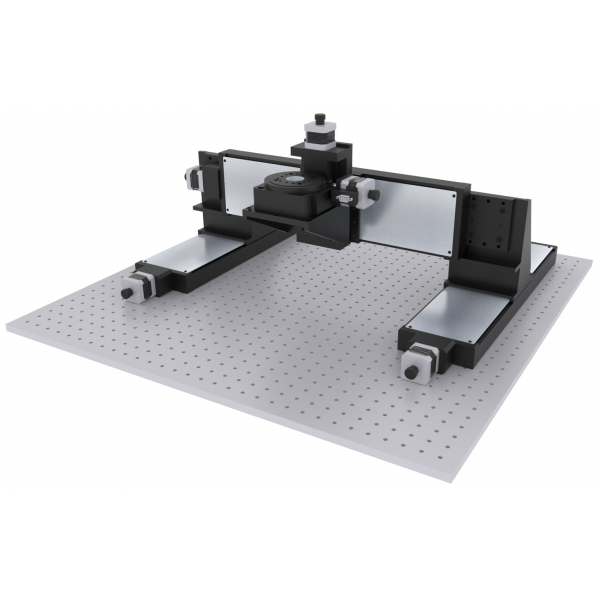

Combination of XYZ Overhead Gantry and worm gear rotary RTLA-30-100 table
- XYZ stroke 300x300x50 mm
- Unlimited rotation
Click Below Images To Enlarge
|
XY stage BSMA-LY-140H-300x300 |
Spec |
Lift stage BSMA-LY-110-50 |
Spec |
Rotary Stage |
Spec |
|
Stroke (mm) |
300 x 300 |
Stroke (mm) | 50 |
Rotation |
unlimited |
|
Repeatability (µm) |
±5 |
Repeatability (µm) | ±5 |
Repeatability (arc-sec) |
36 |
|
Resolution (µm) |
1 |
Resolution (µm) | 0.1 |
Resolution (arc-sec) |
1 |
|
Load capacity (kg) |
5 |
Load capacity (kg) | 5 |
Torque (Nm) |
1 |
|
Velocity (mm/sec) |
100 (servo/encoder) |
Velocity (mm/sec) |
20 (servo/encoder) |
Angular velocity (rpm) |
5 |
|
Mechanism, screw lead (mm) |
ball-screw, 4 |
Mechanism, screw lead (mm) | lead-screw, 1 |
Mechanism, ratio |
worm gear 180:1 |
|
Motor |
stepper/servo |
Motor | stepper/servo |
Motor |
stepper |
