XYZ-LSMA-184-13x13x13
LSMA miniature linear actuators designed for the space confined applications while retaining the high reliability required in production environments. It is an ideal choice for measurement, testing, alignment and component assembly in any application on the factory floor or laboratory environments.
The precision ball screw or micrometer grade lead screw provide excellent accuracy and repeatability with ultra-fine positioning resolution capability of 0.1 micron or finer when driven by the stepper motor. The servomotor version is equipped with a rotary encoder and provides exceptionally smooth travel.

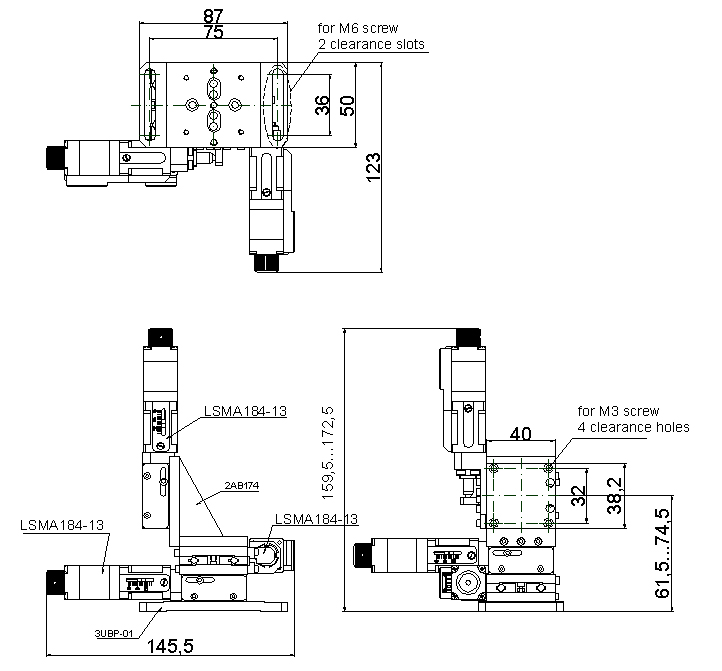

XYZ STAGE 13x13x13 mm
|
XYZ Stroke |
mm |
13x13x13 |
|
Screw lead |
mm |
0.25 |
|
Motor mounts size |
|
Nema8 |
|
Motor type |
|
Stepper (standard) |
|
Load horizontal / vertical |
kg |
5 / 2 |
|
Repeatability |
micron |
1 |
|
Stage weight |
kg |
0.5 |
|
Speed |
mm/sec |
3 (stepper) |
Open loop Micro-stepping resolution = screw_lead/200/microsteps_per_step
where: motor has 200 full steps/rev;
driver micro-stepping resolution 64, 128, 256 micro-steps/step
