XYZ-RA-080-080-080-400x400x150
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.
Cantilever style open access cartesian robots with all moving axes located above work area
- XYZ robotic arm 400 x 400 x 150 mm travel
- Ball screw mechanism
- Stepper or servo motor driven
Options include:
- larger or smaller travel stroke
- precision grade
- ball screw lead
- motor type (stepper or servo/encoder)
- rotary table installation

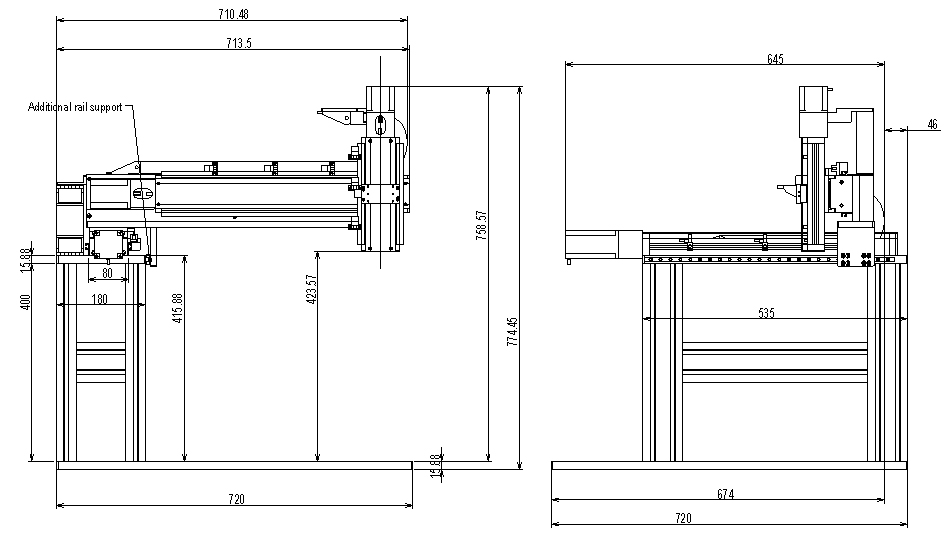

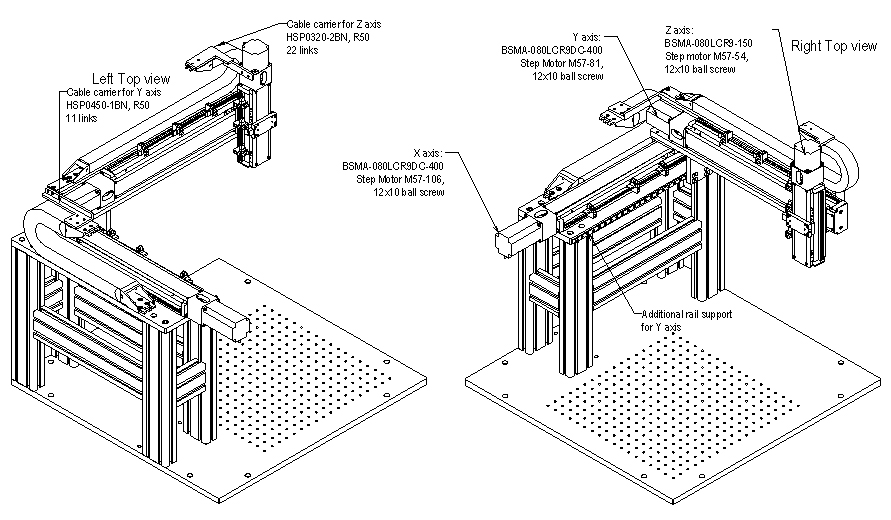

Click Below Images To Enlarge
STROKE XYZ 400x400x150 mm
| Actuator |
BSMA-080 (standard) |
| Stroke XYZ |
400x400x150 mm |
| Ball screw lead |
5, 10 mm |
| Motor mounts |
Nema23, M60 |
| Motor type |
stepper servo with encoder (4000cpr) |
| Repeatability |
± 5 microns |
| Accuracy |
20 microns / 300 mm |
| Load capacity |
10 kg (BSMA-080) |
| Max screw speed |
1,000RPS (stepper) 2,000RPS (servo/encoder) |
RPS (rev/sec)
Speed in mm/sec = RPS x screw_lead
