XYZ-RA-860-X600-Y400-Z150
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.

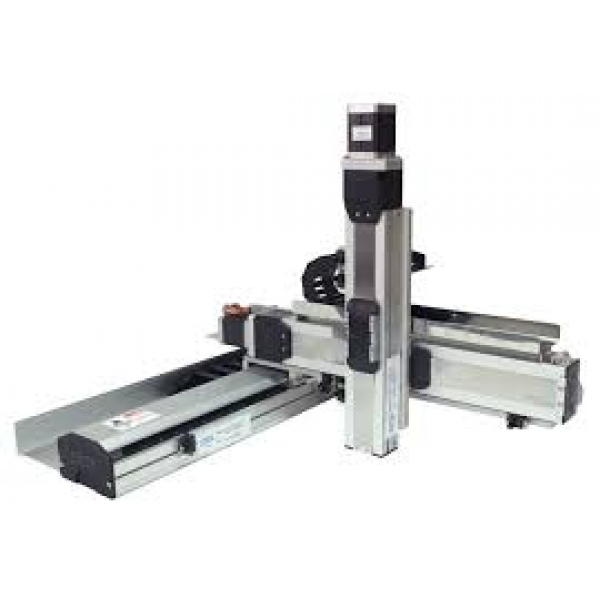

Cantilever style open access cartesian robots with all moving axes located above work area
- XY robotic arm 600 x 400 x 150 mm travel
- Ball screw mechanism
- Stepper or servo motor driven
Options include:
- larger or smaller travel stroke
- precision grade
- ball screw lead
- motor type (stepper or servo/encoder)
- rotary table installation
