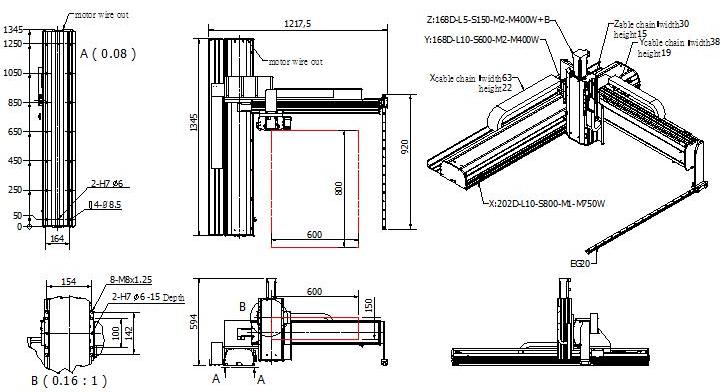

XYZ-GA-288-X800-Y600-Z150
Gantry style cartesian robots with large working areas. All moving axes located above work area.

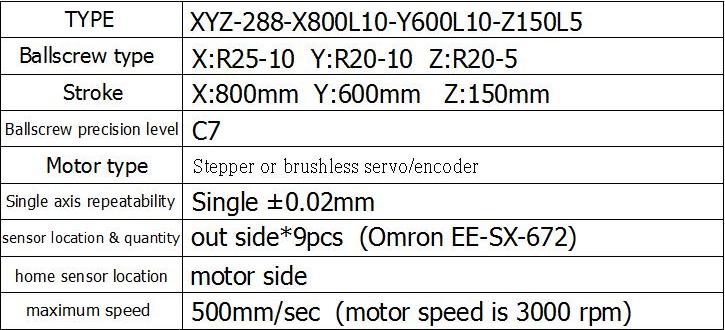

- XYZ Gantry 800 x 600 x 150 mm travel
- Ball screw mechanism
- Stepper or servo motor driven
Options include:
- larger or smaller travel stroke
- precision grade
- ball screw lead
- motor type (stepper or servo/encoder)
- rotary table installation
 GA-110-098-080-600x600x150 GA-110-098-080-60x60x15 STROKE 600 x 600 x 150 mm |
 XY-GA-86-X600-Y600 XY-GA-86-X600-Y600 STROKE 600 x 600 mm Load 12 kg |
XY-GA-86-X800-Y800 XY-GA-86-X800-Y800 STROKE 800 x 800 mm Load 12 kg |
XY-GA-86-X1000-Y1000 XY-GA-86-X1000-Y1000 STROKE 1000 x 1000 mm Load 12 kg |
| XYZ-GA-860-X600-Y600-Z150 GA-860-X600-Y600-Z150 STROKE 600 x 600 x 150 mm Load 12 kg |
XYZ-GA-860-X800-Y600-Z150 GA-860-X800-Y600-Z150 STROKE 800 x 600 x 150 mm Load 12 kg |
XYZ-GA-860-X800-Y800-Z150 GA-860-X800-Y800-Z150 STROKE 800 x 800 x 150 mm Load 12 kg |
XYZ-GA-860-X1000-Y800-Z150 GA-860-X1000-Y800-Z150 STROKE 1000 x 800 x 150 mm Load 12 kg |
| XYZ-GA-860-X1000-Y1000-Z150 GA-860-X1000-Y1000-Z150 STROKE 1000 x 1000 x 150 mm Load 12 kg |
XY-GA-28-X600-Y600 GA-28-X600-Y600 STROKE 600 x 600 mm Load 25 kg |
XY-GA-28-X800-Y600 GA-28-X800-Y600 STROKE 800 x 600 mm Load 25 kg |
XY-GA-28-X800-Y800 GA-28-X800-Y800 STROKE 800 x 800 mm Load 25 kg |
| XYZ-GA-288-X600-Y600-Z150 GA-288-X600-Y600-Z150 STROKE 600 x 600 x 150 mm Load 12 kg |
XYZ-GA-288-X800-Y800-Z150 GA-288-X800-Y800-Z150 STROKE 800 x 800 x 150 mm Load 25 kg |
XYZ-GA-288-X1000-Y1000-Z150 GA-288-X1000-Y1000-Z150 Stroke 1000x1000x150 mm Load 25 kg |
