XYZ-BSMA-058U-120x120-LSZ-8S
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.

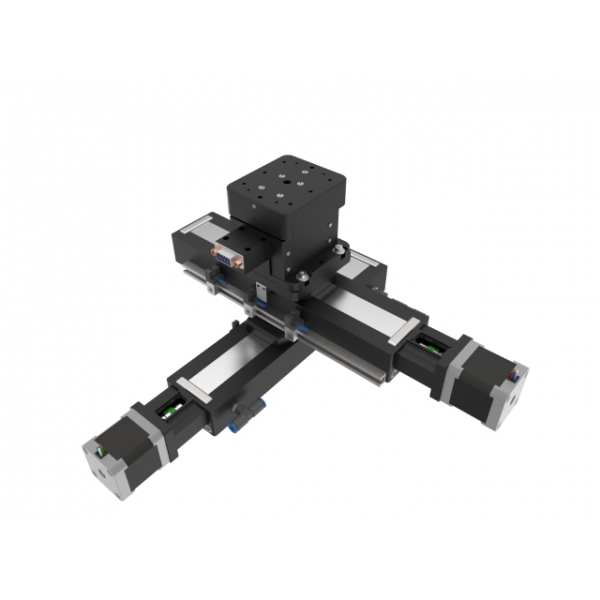

Low profile motorized actuators with precision ball screw provide exceptional accuracy, repeatability and ultra-fine positioning resolution capability to 1 micron in a very compact, low profile unit. They are ideal for space-critical applications such as optical, laser applications and vacuum operation.

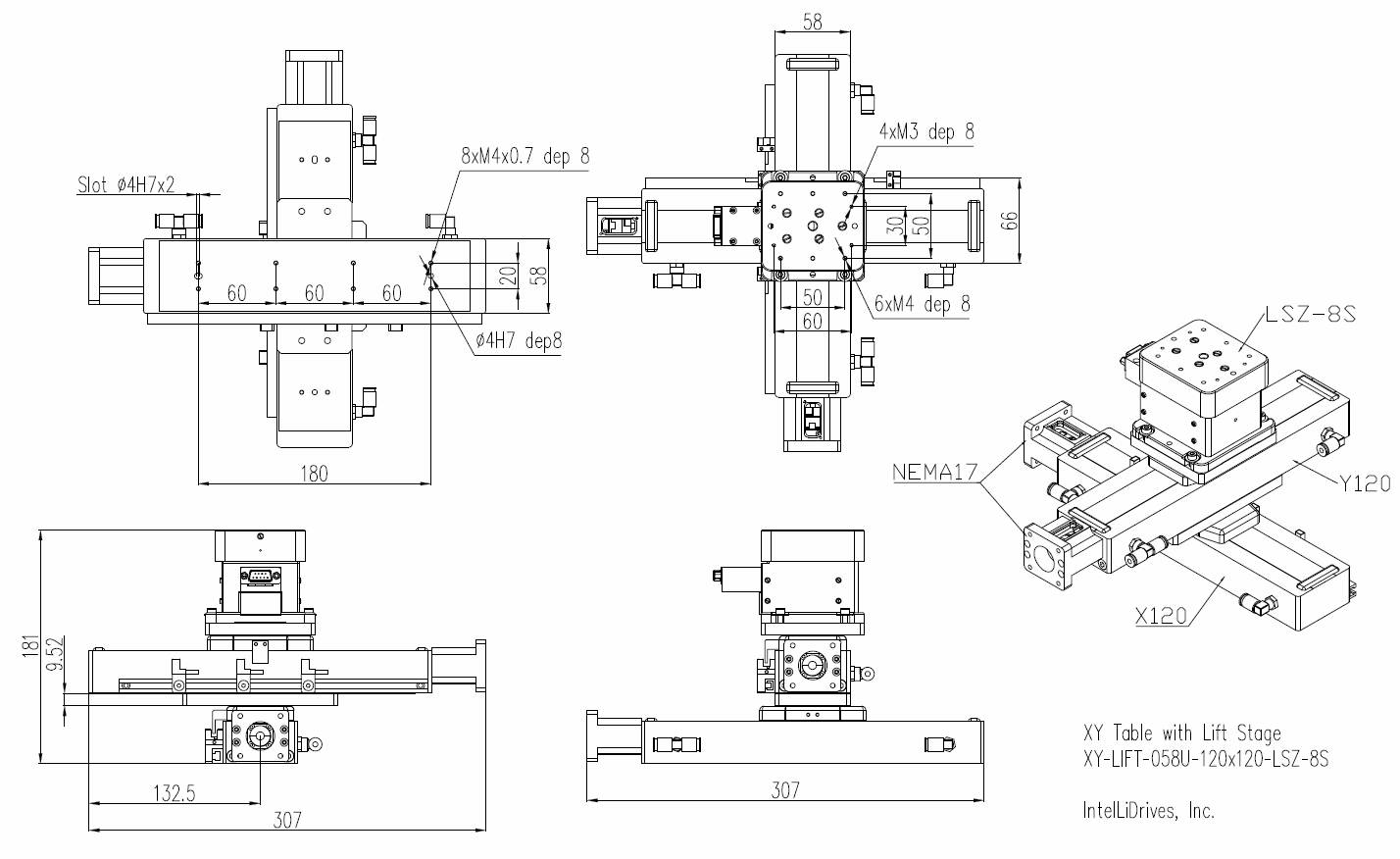

Click Below Images To Enlarge
| Actuator |
BSMA-058U-120x120-LSZ-8S |
| Stroke X x Y x Z |
120x120x8 mm |
| Ball screw lead |
2.5 mm |
| Motor mounts |
Nema17 (42mm) |
| Motor type |
stepper servo with encoder (4000cpr) |
| Repeatability |
± 5 microns |
| Load capacity |
2 - 5kg (lead screw dependent) |
| Max screw speed |
25 RPS (stepper) 75 RPS (servo/encoder) |
RPS (rev/sec)
Speed in mm/sec = RPS x screw_lead
