XYR BSMA-100x100+RTLA30-100
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.

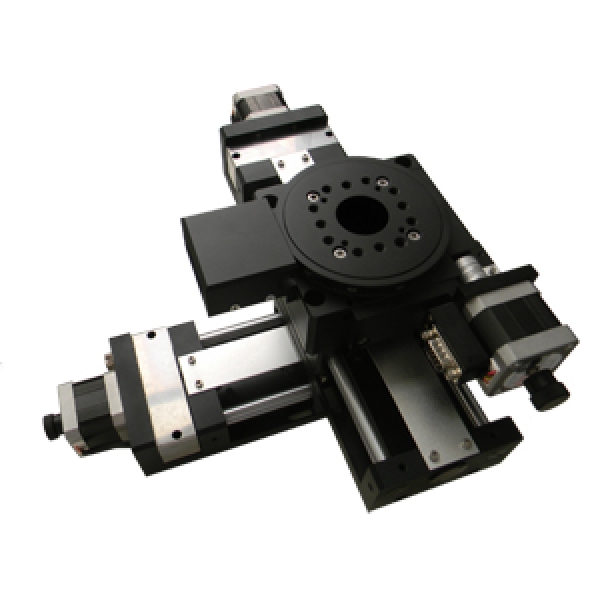

Combination of XY ball screw driven BSMA-120 stages and worm gear rotary RTLA-30-100 table
- XY stroke 100x100 mm
- Unlimited rotation
Click Below Images To Enlarge
XY STROKE 100 x100 mm
ROTATION UNLIMITED
|
XY stage BSMA-120 |
Spec |
Rotary Stage RTLA-30-100 |
Spec |
|
Stroke (mm) |
100 x 100 |
Rotation |
unlimited |
|
Repeatability (µm) |
1 |
Repeatability (arc-sec) |
20 |
|
Resolution (µm) |
0.5 |
Resolution (arc-sec) |
1 |
|
Load capacity (kg) |
15 |
Torque (Nm) |
1 |
|
Velocity (mm/sec) |
40 (stepper) |
Angular velocity (rpm) |
5 |
|
Mechanism, screw lead (mm) |
ball-screw, 4 |
Mechanism, ratio |
worm gear 180:1 |
|
Motor |
stepper |
Motor |
stepper |
