XY Gantry BEMA-W45-1500x1500
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.
Gantry style cartesian robots with large working areas. All moving axes located above work area.
- Synchronized XY Gantry
- 1500 x 1500 mm stroke
- Stepper or servo motor drive
- On-axis repeatability 50 microns
- Motorized belt mechanism
Click Below Images To Enlarge

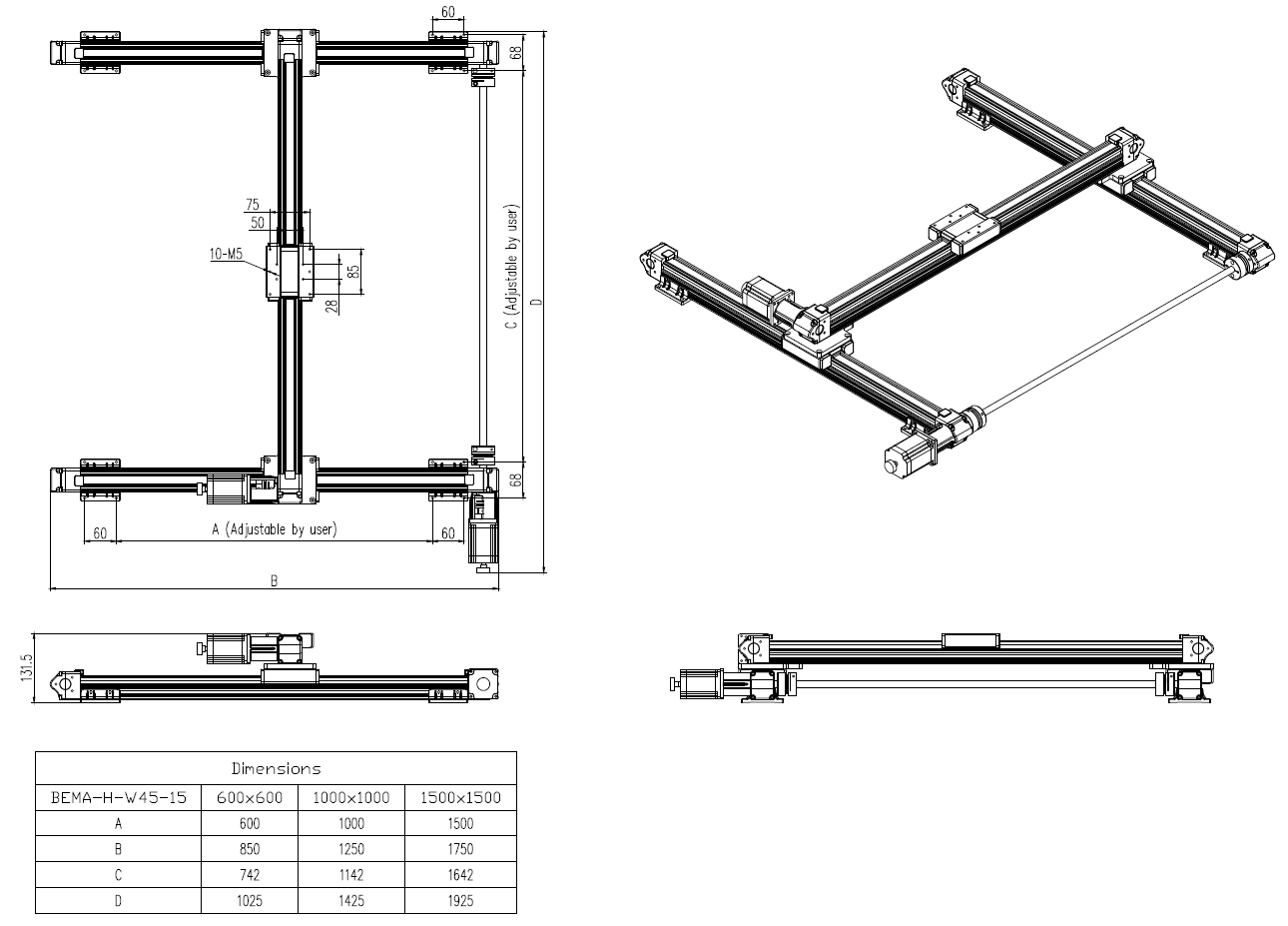

CROSS-AXIS (Y) HORIZONTALLY MOUNTED
CROSS-AXIS (Y) VERTICALLY MOUNTED
.jpg)
| Actuator |
BEMA-45 (X,Y) |
| Stroke X x Y |
1500x1500 mm |
| Type | Moving carriage X, Y, Z |
| Pitch |
75 mm/motor rev |
| Motor mounts |
Nema17, Nema23 |
| Motor type |
stepper servo/encoder |
| Repeatability on-axis |
± 50 microns |
| Load capacity |
10 kg |
| Max screw speed |
2 m/sec |
