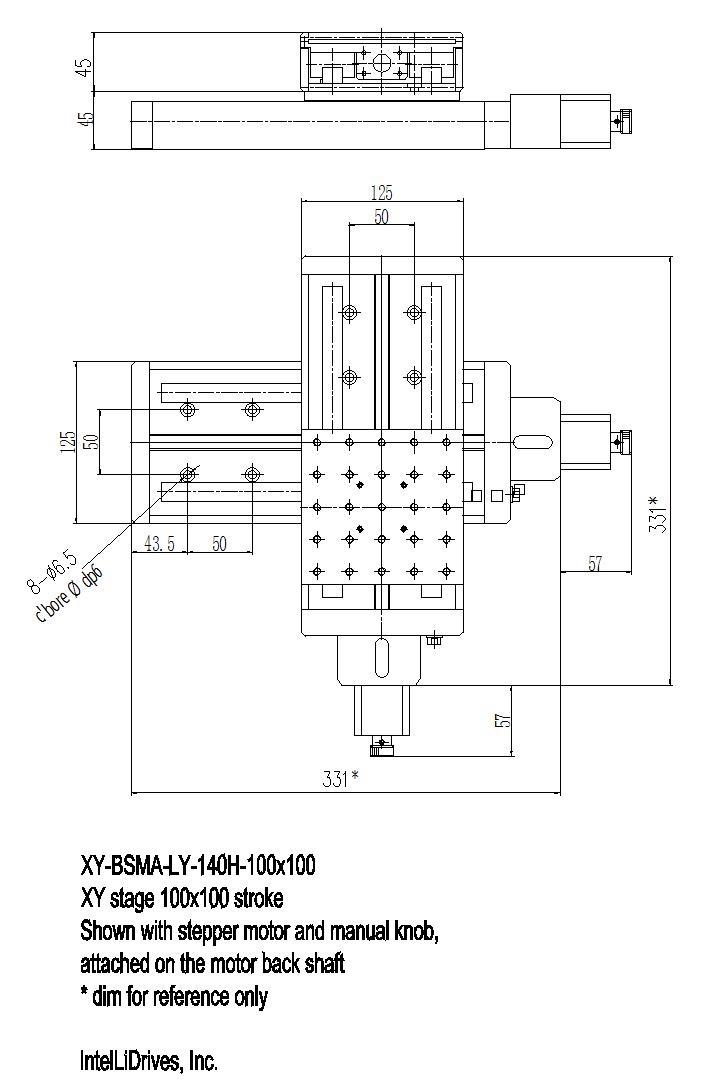

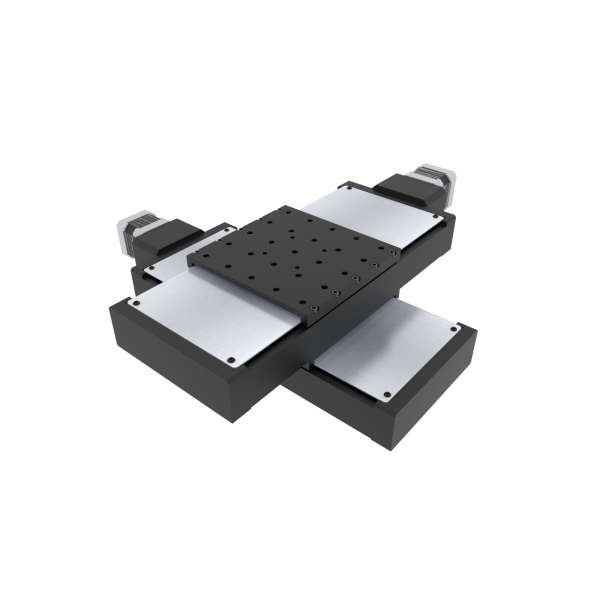

XY-BSMA-140H-100x100
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.
Low profile motorized actuators with precision ball screw provide exceptional accuracy, repeatability and ultra-fine positioning resolution capability to 1 micron in a very compact, low profile unit. They are ideal for space-critical applications such as optical, laser applications and vacuum operation.
Click Below Images To Enlarge
 XY-BSMA-140H-200x200 XY-LY-140H-150x150 XY stroke 200x200mm Load horiz. 15 Kg |
 XY-BSMA-140H-300x300 XY-LY-140H-300x300 XY stroke 300x300mm Load horiz. 15 Kg |
 XYZ-BSMA-LY-140H-100x100x100 XYZ-LY-140H-100x100x100 XYZ stroke 100x100x100mm Load vertical 8 Kg |
| Actuator | |
| Stroke X x Y |
100x100 mm |
| Ball screw lead |
4 mm |
| Motor mounts |
Nema17 |
| Motor type |
stepper servo with encoder (4000cpr) |
| Repeatability |
± 10 microns |
| Load capacity |
16 kg |
| Max screw speed |
10 RPS (stepper) 25 RPS (servo/encoder) |
RPS (rev/sec)
Speed in mm/sec = RPS x screw_lead
