XY-OF-50x50LY
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.

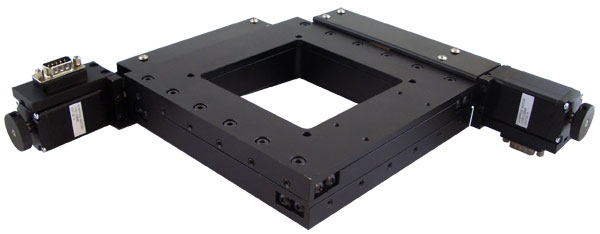

Open-frame XY stages designed with a low profile for a wide range of automated accurate positioning in microscope-based applications. The drive mechanism located on the side of the unit and offers a clear unobstruced two axes aperture to enable light or objects to pass through the center of travel.

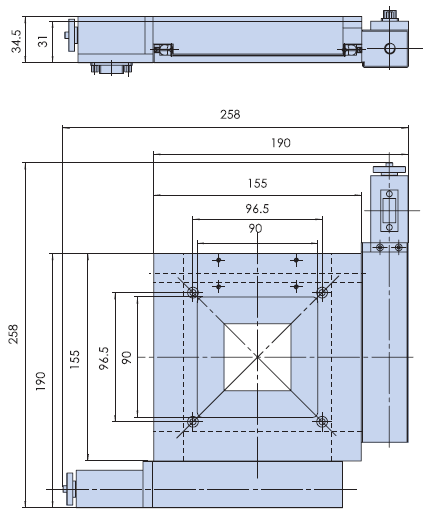

Click Below Images To Enlarge
| Model | Unit |
XY-OF-LY 15x15 |
XY-OF-LY 50x50 |
XY-OF-ST 75x75 |
XY-OF-LY 100x100 |
XY-OF-ST 100x100 |
| Stroke XY | mm | 15x15 | 50x50 | 75x75 | 100x100 | 100x100 |
| Screw lead | mm |
1 |
1 | 0.5 | 4 | 0.5 |
| Aperture | mm | 15x15 | 50x50 | 90x90 | 188x188 | 100x100 |
| Table top | mm | 90x90 | 155x155 | 150x150 | 300x300 | 175x175 |
| Height | mm | 33 | 34 | 45 | 80 | 45 |
| Accuracy | micron | 5 | 5 | 5 | 15 | 10 |
| Backlash | micron | 2 | 2 | 3 | 5 | 3 |
| Straightness | micron | 10 | 10 | 5 | 10 | 10 |
| Resolution | micron | 1 | 1 | 0.5 | 2 | 0.5 |
| Motor type | Stepper/Servo/Encoder | |||||
| Repeatability | micron | 1 | 1 | 1 | 4 | 1 |
| Load capacity | kg |
10 |
10 | 20 | 50 | 30 |
| Table weight | kg | 3 | 5 | 3 | 8 | 4 |
| Max speed | mm/sec |
10 |
10 | 5 | 40 | 5 |
| Model | Unit |
XY-OF-75x75J |
| Stroke XY | mm | 75x75 |
| Screw lead | mm |
ballscrew 1, 4 |
| Aperture | mm | 90x90 |
| Table top | mm | 150x150 |
| Height | mm | 45 |
| Backlash | micron | <5 |
| Resolution | micron | 0.5 (with encoder) |
| Motor NEMA11 |
stepper, stepper/encoder |
|
| Repeatability | micron | <5 |
| Load capacity | kg |
10 |
| Table weight | kg | 3.5 |
| Max speed | mm/sec |
80 with servo motor and screw and 4 mm lead |
