XY-OF-15x15LY
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.
Open-frame XY stages designed with a low profile for a wide range of automated accurate positioning in microscope-based applications. The drive mechanism located on the side of the unit and offers a clear unobstruced two axes aperture to enable light or objects to pass through the center of travel.

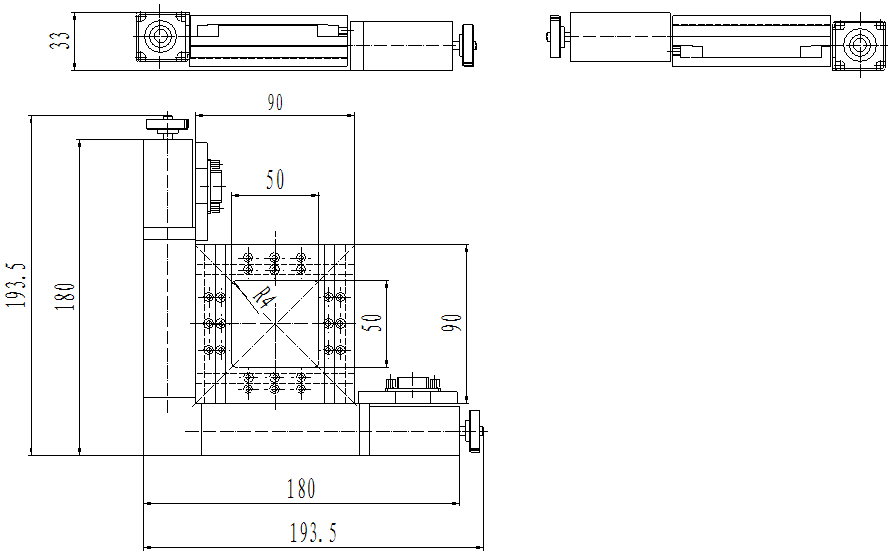

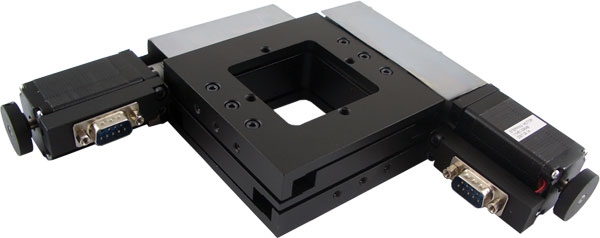

Click Below Images To Enlarge
| Model | Unit |
XY-OF-15x15LY |
| Stroke XY | mm | 15x15 |
| Screw lead | mm |
4 |
| Aperture | mm | 50x50 |
| Table top | mm | 50x50 |
| Height | mm | 33 |
| Backlash | micron | 10 |
| Resolution | micron | 0.5 (with encoder) |
| Motor NEMA17 |
stepper, stepper/encoder |
|
| Repeatability | micron | 10 |
| Load capacity | kg |
10 |
| Table weight | kg | 2.7 |
| Max speed | mm/sec |
80 |
