XY-LSS-LMX-25x25
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.
Low profile, short stroke XY stages with linear motors and micron-grade linear encoders
Click Below Images To Enlarge
Can be supplied with and without cable tracks
|

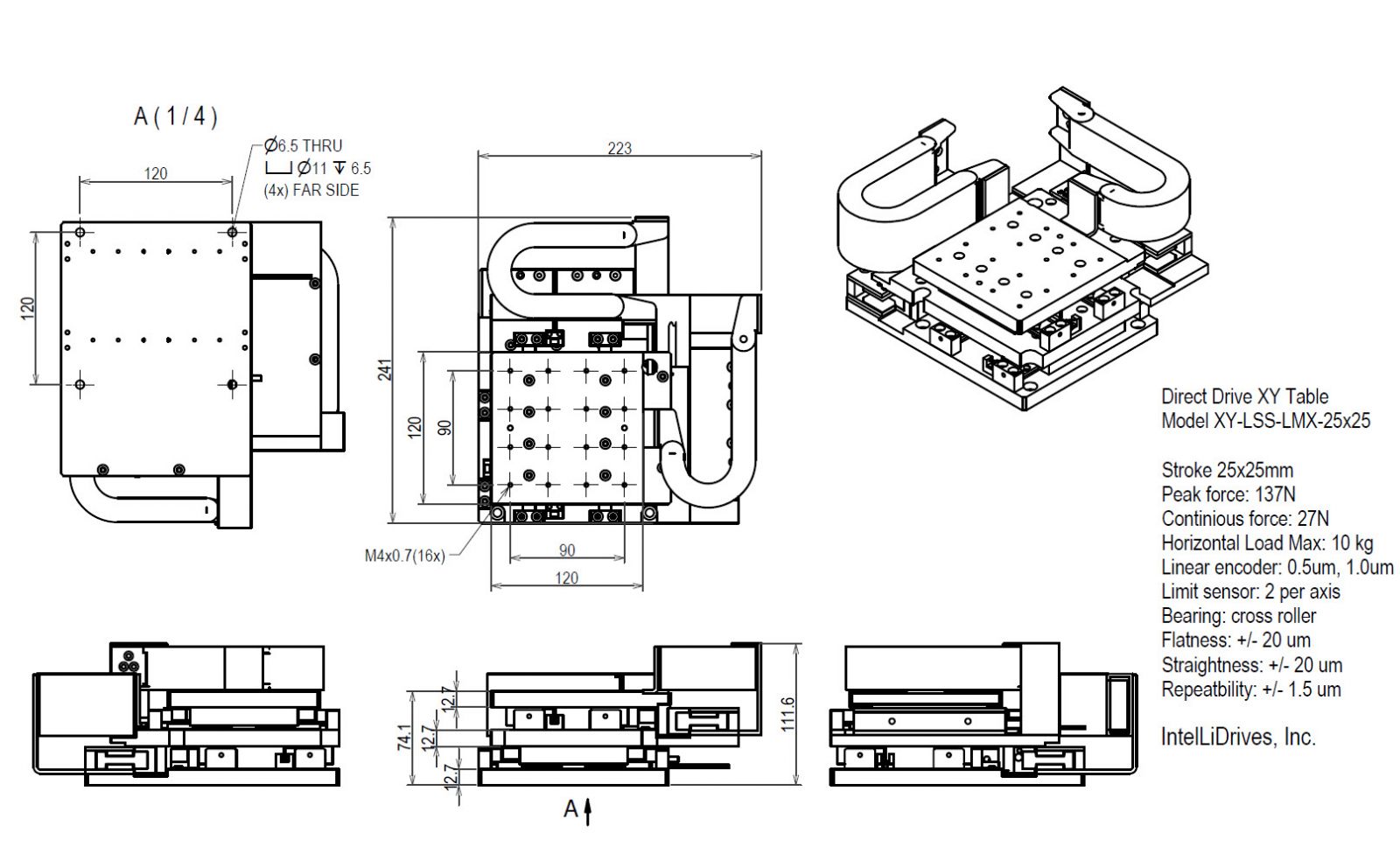

XY stage XY-LSS-LMX-25x25 |
Spec |
|
Stroke (mm) |
25x25 |
|
Repeatability (µm) |
0.5; 1.0 |
|
Resolution (µm) |
0.5; 1 |
|
Load capacity (kg) |
5 |
|
Velocity (mm/sec) |
500 |
|
Drive mechanism |
direct drive |
|
Motor |
linear, core-less, servo |
| Size (mm) | 120x120 |
| Height (mm) | 75 |
