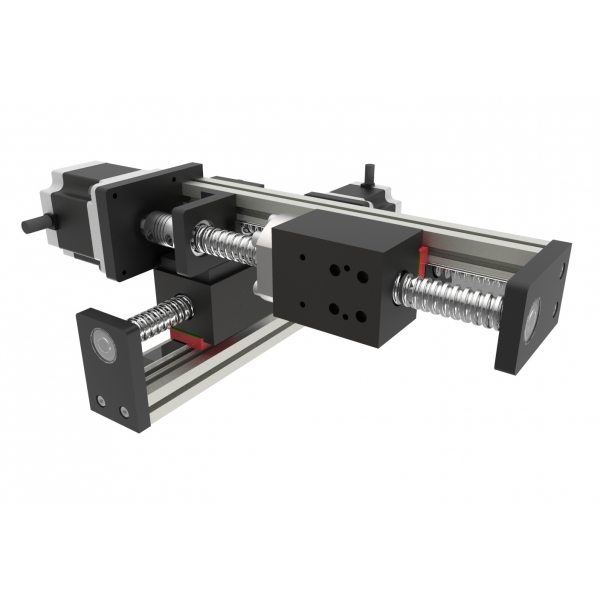

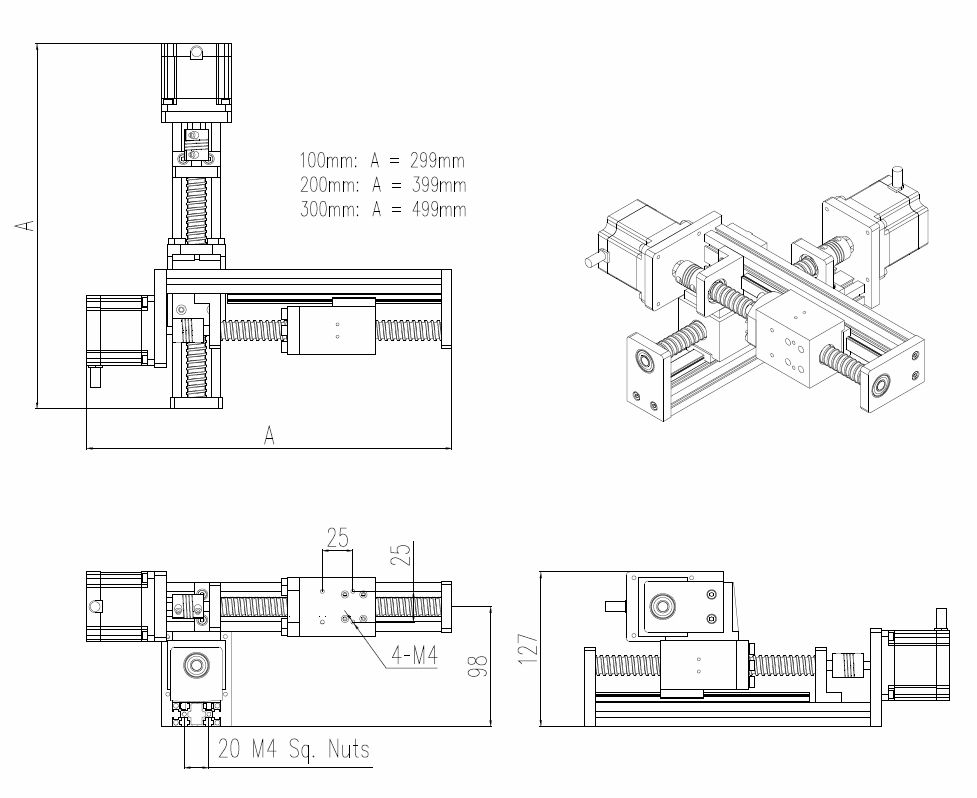

XY-BSMAE-F40X
Low profile motorized actuators with precision ball screw provide exceptional accuracy, repeatability and ultra-fine positioning resolution capability to 1 micron in a very compact, low profile unit. They are ideal for space-critical applications such as optical, laser applications and vacuum operation.
 XY-BSMAE-F40S XY-BSMAE-F40S XY stroke Load 5 Kg
|
 XY-BSMAE-F40X XY-BSMAE-F40X XY stroke Load 5 Kg
|
 XZ-BSMAE-F40T XZ-BSMAE-F40T XZ stroke Load 5 Kg
|
 XYZ-BSMAE-F40T XYZ-BSMAE-F40T XYZ stroke Load 3 Kg
|
 XYZ-BSMAE-F40X XYZ-BSMAE-F40X XYZ stroke Load 3 Kg
|
 XYZ GANTRY BSMAE-F40L-300x300x100 XYZ-BSMAE-F40L-300x300x100 XYZ stroke Load 10 Kg
|
 XYZ GANTRY BSMAE-F40L-600x600x100 XYZ-BSMAE-F40L-600x600x100 XYZ stroke Load 10 Kg
|
 XYZ GANTRY BSMAE-F80L-600x600x100 XYZ-BSMAE-F80L-600x600x100 XYZ stroke Load 15 Kg
|
 XYZ GANTRY BSMAE-F120L-1000x1000x100 XYZ-BSMAE-F120L-1000x1000x100 XYZ stroke Load 25 Kg
|
|
XY Stroke |
mm |
100x100 |
|
Screw lead |
mm |
5, 10 |
|
Motor mounts size |
|
Nema17 (Nema23) |
|
Motor type |
|
Stepper (standard) Servo/encoder |
|
Load |
kg |
5 |
|
Repeatability |
micron |
30 |
|
Stage weight |
kg |
6 |
|
Speed |
mm/sec |
50 - 100 (stepper) 100 - 200 (servo) |
Open loop Micro-stepping resolution = screw_lead/200/microsteps_per_step
where: motor has 200 full steps/rev;
driver micro-stepping resolution 64, 128, 256 micro-steps/step
Closed loop servo resolution = screw_lead/encoder_cpr/4
where: encoder_cpr is number of encoder counts per revolution;
4 is post-quad processing in the motion controller
