GANTRY-GA-X600
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.

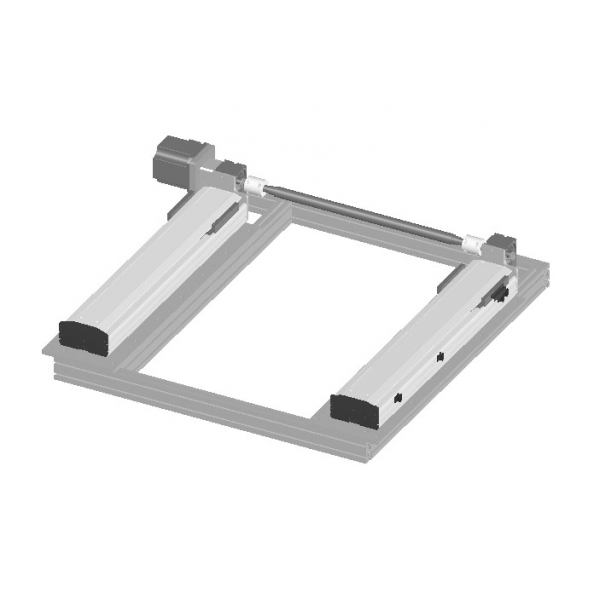

Gantry style cartesian robots with large working areas. All moving axes located above work area. - XX Gantry 600 mm travel - Ball screw mechanism - Stepper or servo motor driven Options include: - larger or smaller travel stroke - precision grade - ball screw lead - motor type (stepper or servo/encoder) - rotary table installation
Click Below Images To Enlarge
 GA-110-098-080-600x600x150 GA-110-098-080-60x60x15 STROKE 600 x 600 x 150 mm |
 XY-GA-86-X600-Y600 XY-GA-86-X600-Y600 STROKE 600 x 600 mm Load 12 kg |
XY-GA-86-X800-Y800 XY-GA-86-X800-Y800 STROKE 800 x 800 mm Load 12 kg |
XY-GA-86-X1000-Y1000 XY-GA-86-X1000-Y1000 STROKE 1000 x 1000 mm Load 12 kg |
| XY-GA-28-X600-Y600 GA-28-X600-Y600 STROKE 600 x 600 mm Load 25 kg |
XY-GA-28-X800-Y600 GA-28-X800-Y600 STROKE 800 x 600 mm Load 25 kg |
XY-GA-28-X800-Y800 GA-28-X800-Y800 STROKE 800 x 800 mm Load 25 kg |
XYZ-GA-288-X600-Y600-Z150 GA-288-X600-Y600-Z150 STROKE 600 x 600 x 150 mm Load 12 kg |
| XYZ-GA-288-X800-Y600-Z150 GA-288-X800-Y600-Z150 STROKE 800 x 600 x 150 mm Load 25 kg |
XYZ-GA-288-X1000-Y1000-Z150 GA-288-X1000-Y1000-Z150 Stroke 1000x1000x150 mm Load 25 kg |
