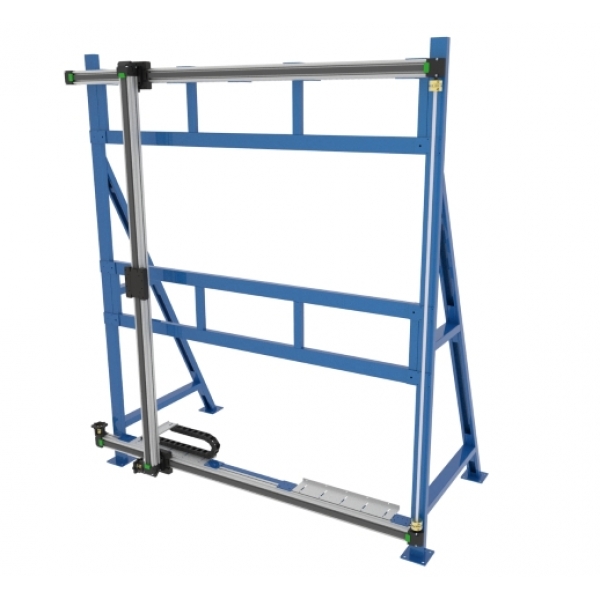

Vertical XY gantry Type2 BEMA-W60-1500x1500

Click to enlarge

Send Quote/Information Request

When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

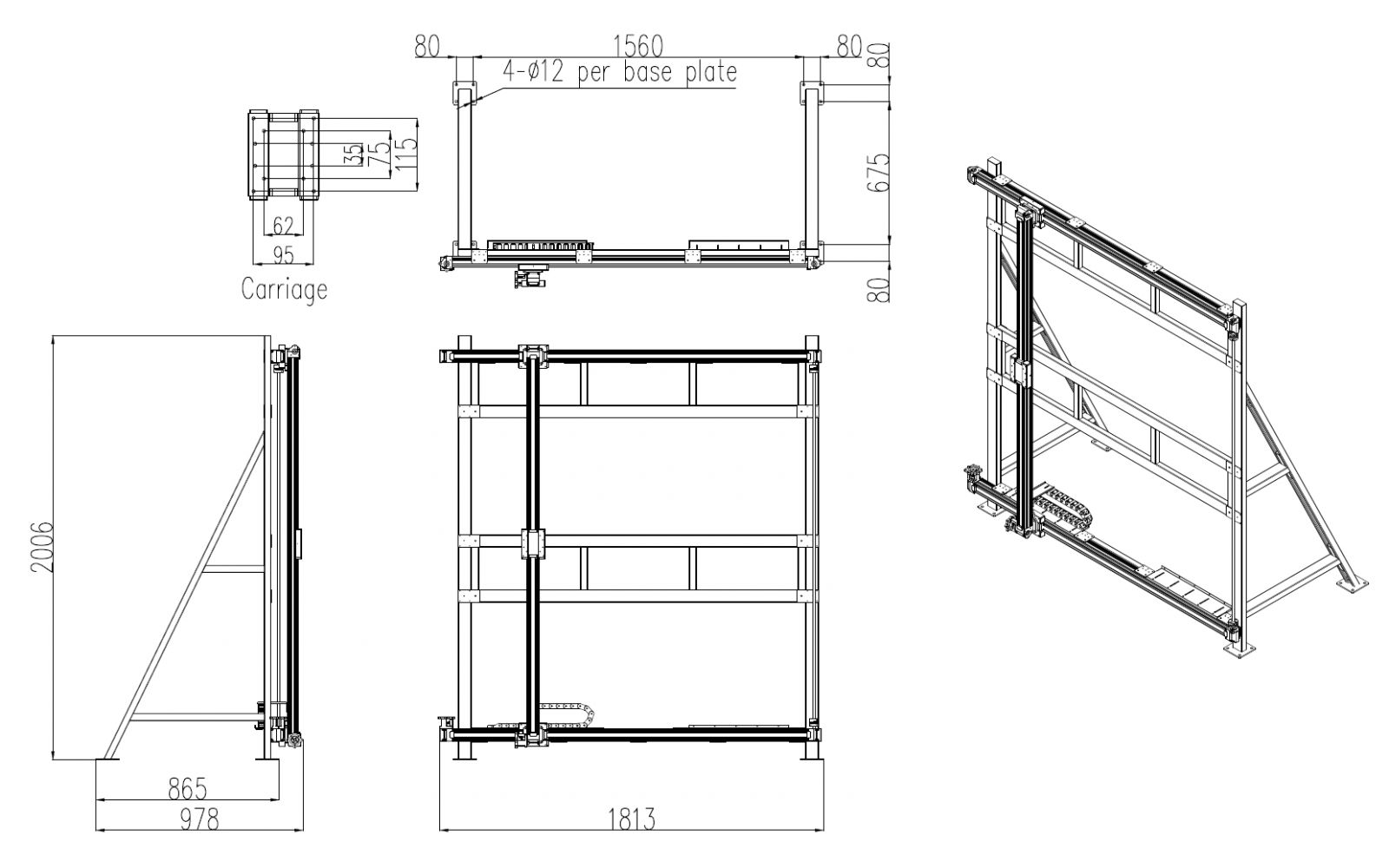

Description Specifications Drawings Related

Vertical XY gantry system with motorized belt actuators designed for automated accurate positioning applications.

Easy to program with VISUAL IMAC icon based controller. No need to write a single line of code!

Click Below Images To Enlarge

Vertical XYZ gantry with linear motors
Vertical XYZ gantry

Stroke 1,000x1,000mm
Load 20 Kg
Repeatability 1 microns
Linear motor actuators

Actuator	BEMA-60 (X,Y)
Stroke X x Y	1,500x1,5000 mm
Pitch	90mm/motor rev
Motor mounts	Nema23
Motor type	stepper servo/encoder
Repeatability on-axis	± 50 microns
Load capacity	15 kg
Max speed	2 m/sec (motor/drive dependent)

Other travel strokes available. Contact the factory
