Vertical XYZ gantry with linear motors

Click to enlarge

Send Quote/Information Request

When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

Description Specifications Drawings Related

Vertical XYZ gantry system with linear motors designed for automated accurate positioning applications.

Click Below Images To Enlarge

Drawing of the XYZ gantry

Stroke 1 m (Z) x 1 m (Y) x 100 mm (X)

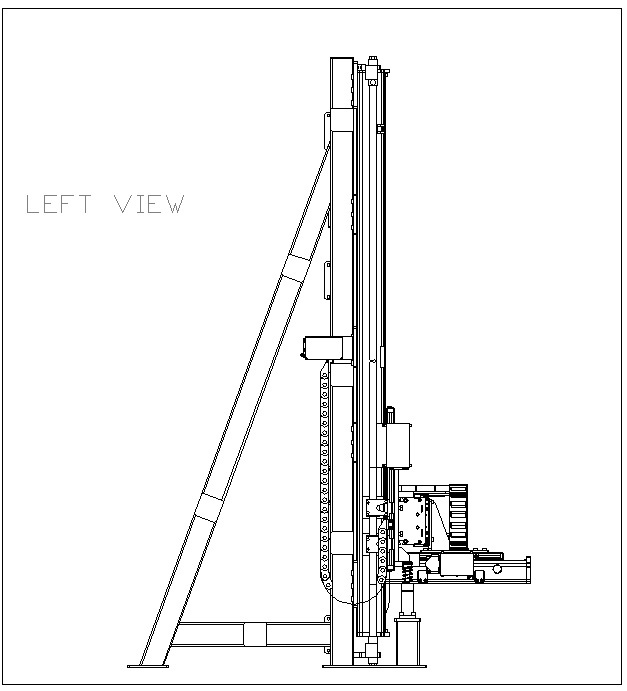

drawing_xyz_left_691

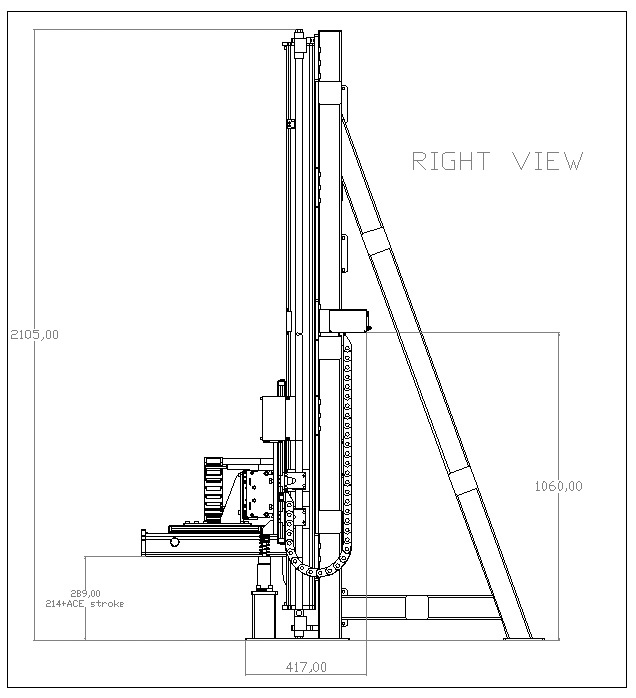

drawing_xyz_right_698

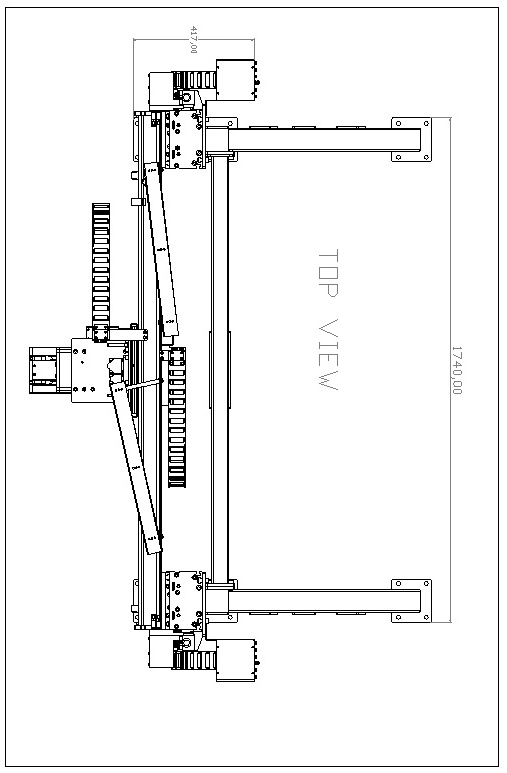

drawing_xyz_top_773_01

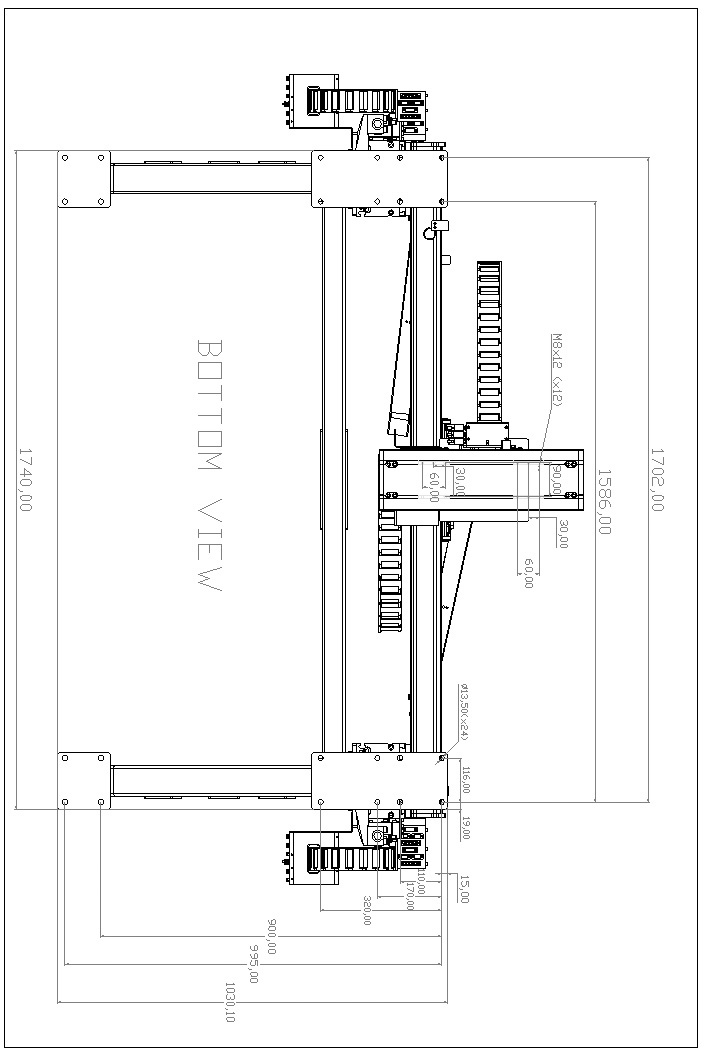

drawing_xyz_vertical_bottom_1054

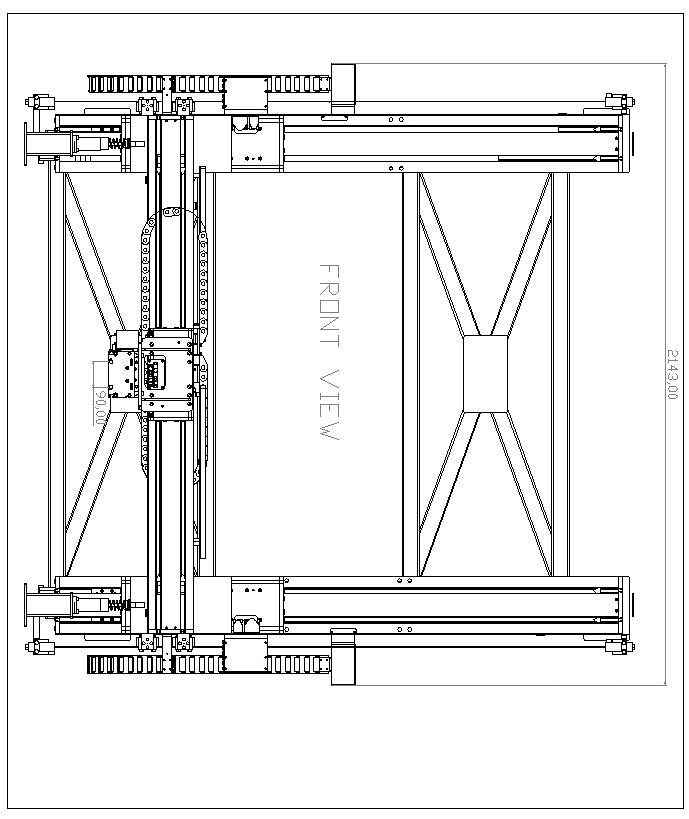

drawing_xyz_vertical_front_819

There are no related products for this product.

- Stroke 1 m (Z) x 1 m (Y) x 100 mm (X)

- Direct drive linear servo actuators

- Resolution 1 micron

- Repeatability 5 microns

- Load 20 Kg

- Shock absorbers

- Linear brake system
