Theta-Y-Theta-Z-RTLA-90-200-RTLA-60-150
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.

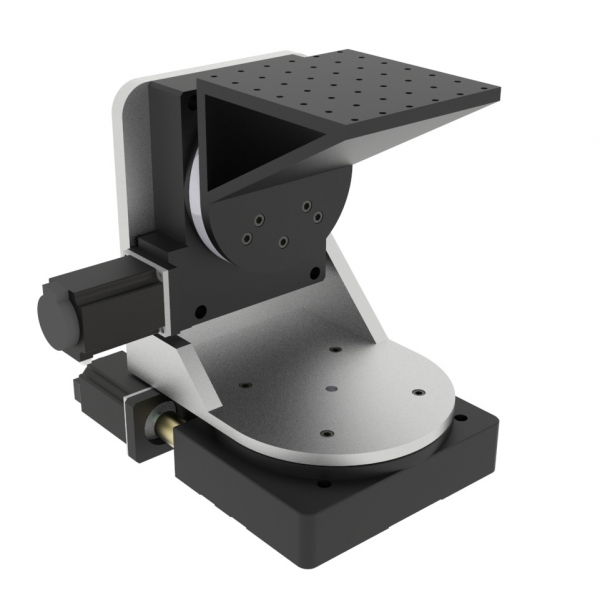

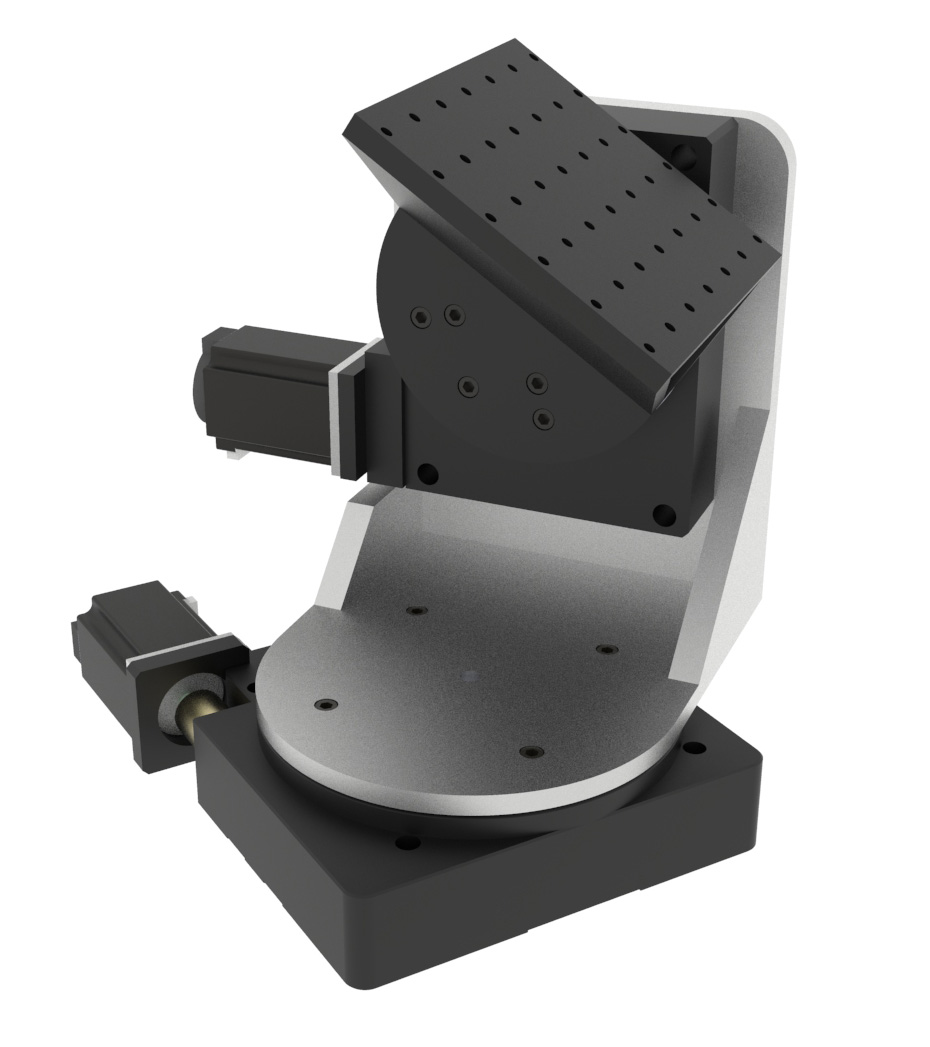

Theta-Y-Theta-Z rotation system. Both axes have preloaded bearings and motorized worm gear mechanism for wobble-free rotation and positioning.
Both axes can rotate 360 degrees independently. Both stages have metric tapped holes for mounting components and sub-assemblies.
-
Click Below Images To Enlarge
 Tilt-Yaw (A/B) rotary ISRT-2D-0603 Tilt-Yaw (A/B) rotary SRT-0603
Direct drive (gearless) servo Incremental encoder Tilt (A axis) 190 degrees rotation Yaw (B axis) 360 degrees rotation Load 10 kg |
 Tilt-Yaw (A/B) Rotary IDTT-2D-125 TILT-YAW ROTARY DTT-125
IP65 ... IP67 rating Direct Drive (gearless) servo Absolute encoder Tilt (A axis) 220 degrees rotation Yaw (B axis) 360 degrees rotation Load 20 kg Brake option |
|
|
θY axis |
θZ axis |
|
mechanism |
worm gear |
worm gear |
|
max speed |
10 |
3 |
|
rotation |
n*360° |
n*360° |
|
repeatability |
30 arc-sec |
|
|
run-outs |
20 microns |
|
|
load weight |
5 Kg (θY axis) |
|
