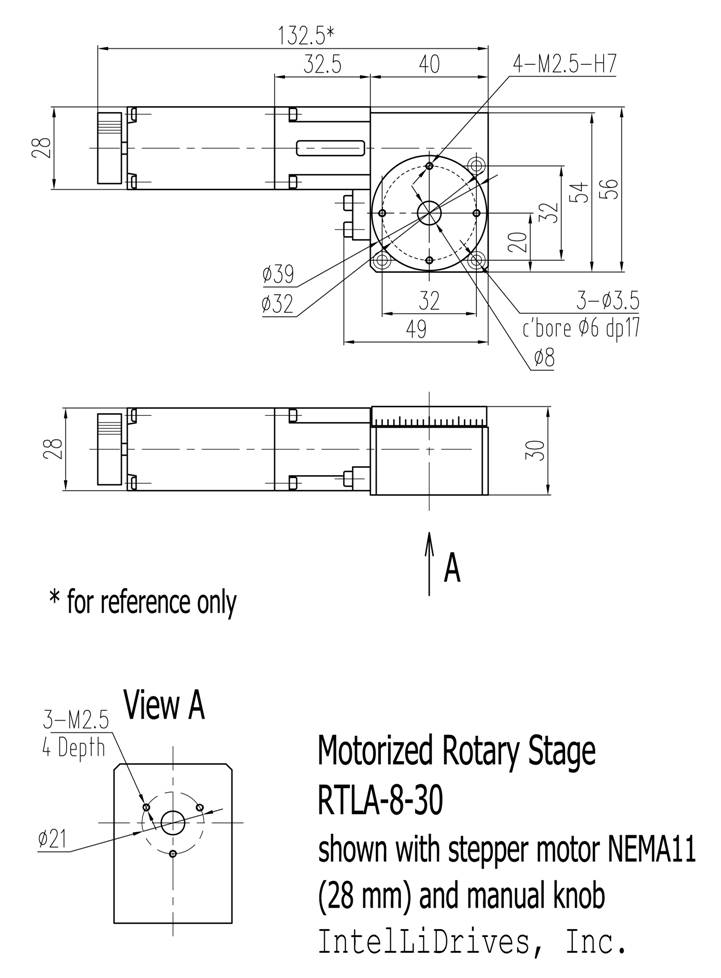

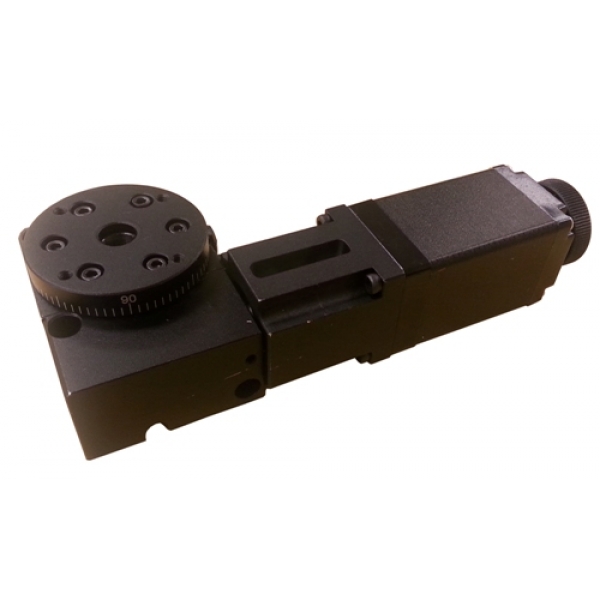

Rotary Table RTLA-8-30
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.
RTLA COMPACT Series of Rotary tables use a worm gear drive design with a central rotating ball bearing.
The tables accept NEMA size 11 stepper motors. All tables have 360° visial scale.
- Load capacity 1 kg
- Stepper or servo motor driven
- 8 mm center aperture
- Precision bearing system
Click Below Images To Enlarge
 Rotary Table RTLA-30-100 RTLA-30-100
Diameter 100 mm Height 45 mm Load 5 Kg |
 Rotary stage RTHM-151 RTHM-151
Diameter 60 mm Aperture 30 mm Height 29 mm |
 Rotary stage RTHM-174 RTHM-174
Diameter 40 mm Aperture 11 mm Height 25 mm |
 Rotary stage RTHM-50-100J RTHM-50-100J
Diameter 100 mm Aperture 50 mm Height 35 mm |
 Rotary Table RTLA-0-60 RTLA-0-60
Diameter 60 mm Height 45 mm Load 2 Kg |
|
Parameter |
Unit |
RTLA-8-30 |
|
Worm gear ratio |
|
68:1 |
|
Max speed |
rpm |
10 |
|
Load axial |
Kg |
1 |
|
Load radial |
Kg |
0.5 |
|
Table top axial run out |
microns |
20 |
|
Repeatability (unidirectional) |
arc-sec |
30 |
|
Table weight |
Kg |
0.4 |
|
Clear Aperture |
mm |
8 |
|
Diameter |
mm |
30 |
