Rotary table RTGYH-90
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.

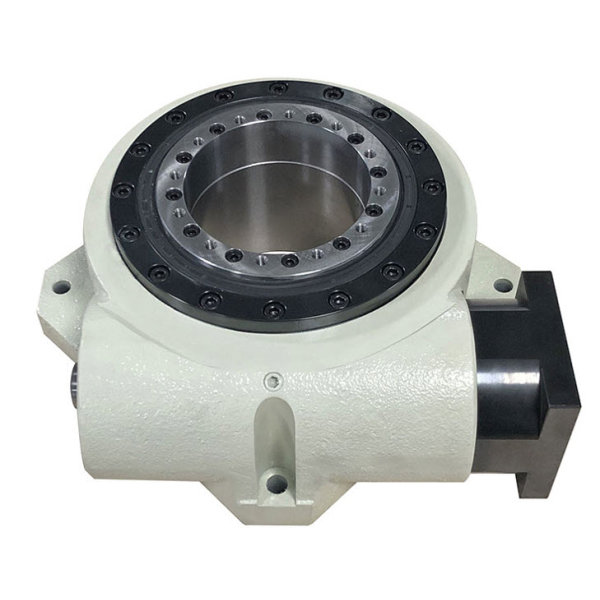

RTGYH-90 Automation Series of Rotary tables use cam drive gear drive design with a cross-roller rotating ball bearing.
This table accept NEMA34 (86 mm) motor size motors.
- Axial Load capacity 400 kg
- Stepper or servo motor driven
- 100 mm center aperture
- High capacity bearing system
Click Below Images To Enlarge
|
Parameter |
Unit |
RTGYH-90 |
|
Worm gear ratio |
|
60:1, 80:1, 100:1 |
|
Max speed |
rpm |
60 |
|
Load axial |
Kg |
400 |
|
Repeatability (unidirectional) |
arc-sec |
15 |
| Moment load | Nml | 200 |
| Flatness | micronl | 15 |
|
Table weight |
Kg |
28 (without motor) |
|
Clear Aperture |
mm |
100 |
|

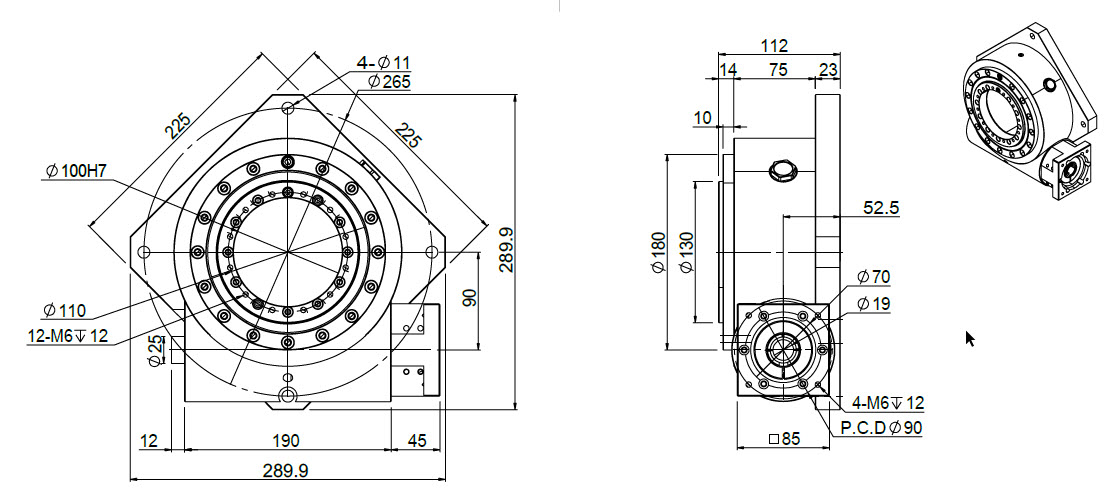

Dimension |
mm |
290x290 |
| Weight-lifter | Kg | 32 |
Motor choices:
- NEMA34 (86 mm) motor frame
- stepper motor(encoder) or brushless servo/encoder
