MICRO TRANSLATION

MOTORIZED LINEAR ACTUATORS

LSMA-173

Micro Linear Actuators MLA-173 provides precision travel up to 50 mm. Driven by a brushless servo or stepper motor with a precision ground ball screw, this motorized stage offers high-resolution up to  0.1 micron. Linear actuator has low profile, high-stability compact and monolithic design, as its main feature, and together with its high resolution makes this device ideal for its integration in high precision measurement and manufacturing systems.

MLA-173 Linear Actuators translation stages have two limit sensors for end of travel and referencing. Motors have graduated knobs for manual operation and position observation.

Multi-axes XYZ system with LSMA-173 actuators

Specifications

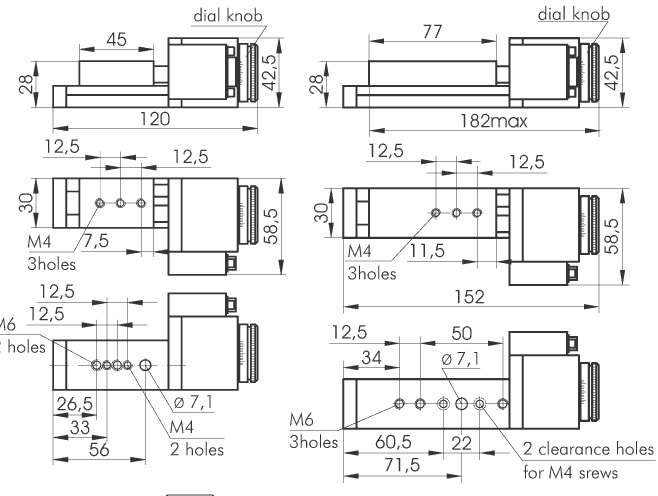

• Compact design 30mm width

• Resolution  0.1 microns

• Travel 5, 8, 10, 25, 30, 50 mm

• Load capacity 3kg

• Straightness  5 microns

• Lightweight 400 g
