Linear Actuator BSMA-C100D

Click to enlarge

Send Quote/Information Request

When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

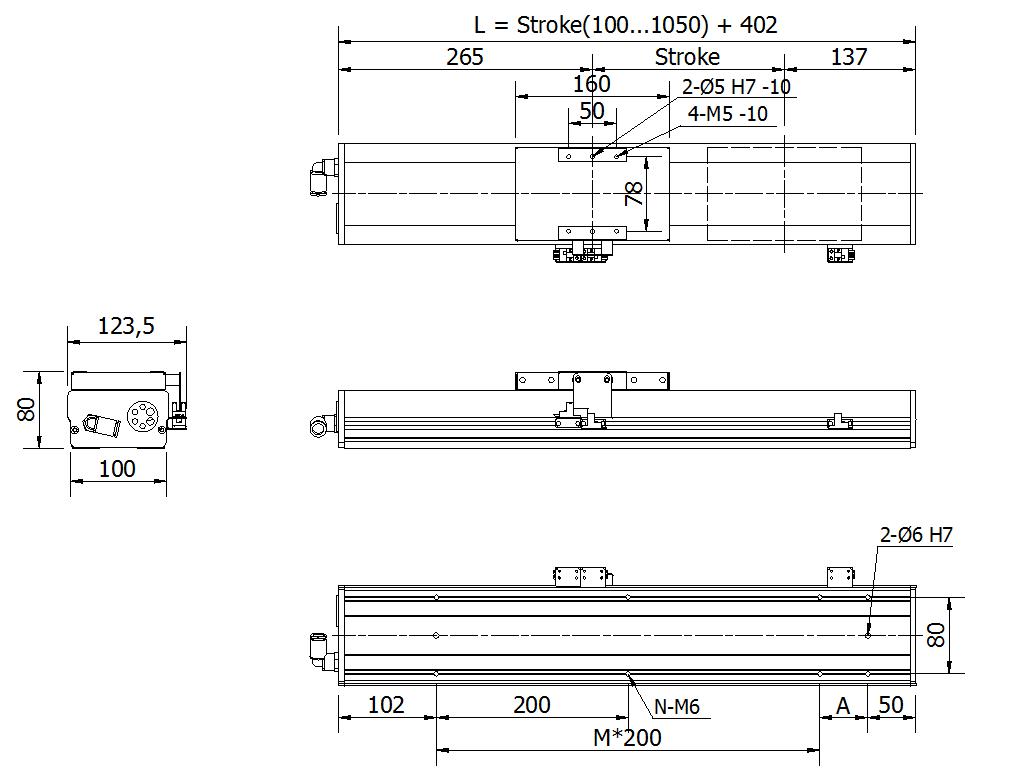

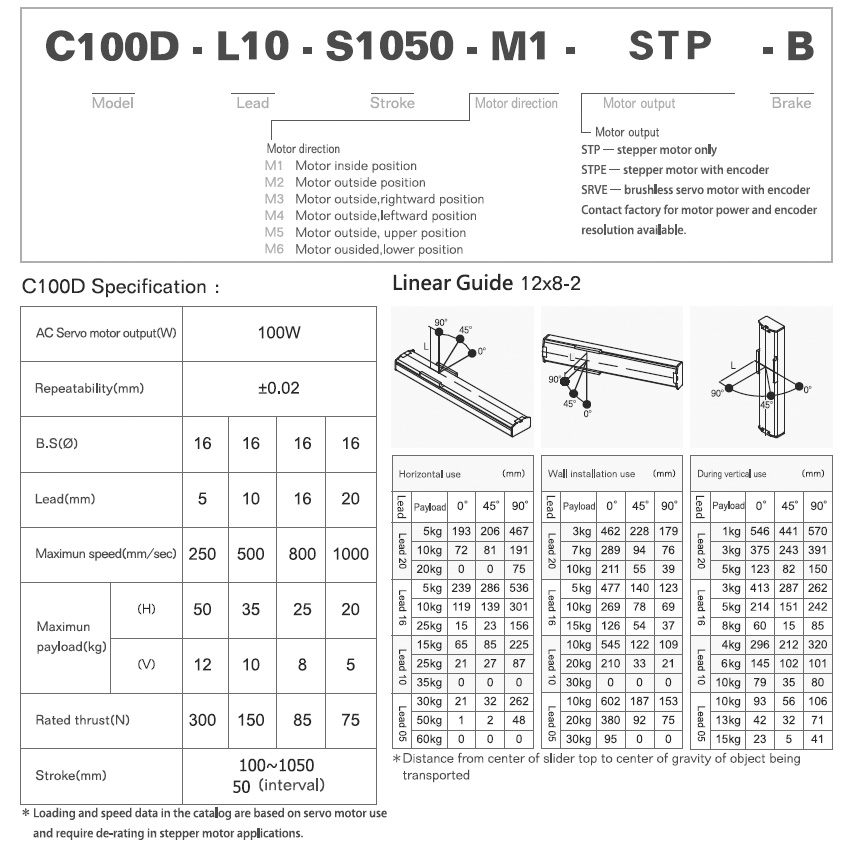

Description Specifications Drawings Related

Clean Room rating is achieved through a sealed structure and high durability stainless steel strip cover. The actuator body is electro-less plated for corrosion resistance. Actuator has vacuum suctions ports to exhaust any particles generated by the moving parts. These linear actuators confirm to 209E clean room classification and Class 10 VDI 2083-8 standard.

Click Below Images To Enlarge

Linear actuator BSMA-058CR BSMA-058-CR Stroke 50...300 mm Cross-section 58x36 mm (WxH) Load 20 Kg Repeatability 5 microns	Linear actuator BSMA-076CR BSMA-076CR Stroke 50...600 mm Cross-section 76x55 mm (WxH) Load 40 Kg Repeatability 5 microns	Linear actuator BSMA-098CR BSMA-098CR Stroke 100...800 mm Cross-section 98x62 mm (WxH) Load 60 Kg Repeatability 5 microns	Linear actuator BSMA-115CR BSMA-115CR Stroke 100...1000 mm Cross-section 115x75 mm (WxH) Load 100 Kg Repeatability 5 microns
Linear Actuator BSMA-C136D BSMA-C136D Stroke 100...1,050 mm Cross-section 136x78 mm (WxH) Load 80 Kg Repeatability 20 microns

Configurations

Linear and Rotary Motion in its Simplest Form™

Linear Actuator BSMA-C100D
