Linear Actuator BEMA-CB168D
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.
Clean Room rating is achieved through a sealed structure and high durability stainless steel strip cover. The actuator body is electro-less plated for corrosion resistance. Actuator has vacuum suctions ports to exhaust any particles generated by the moving parts. These linear actuators confirm to 209E clean room classification and Class 10 VDI 2083-8 standard.
Click Below Images To Enlarge
 Linear Actuator BEMA-CB100D BEMA-CB100D Stroke 150...1,850 mm Cross-section 105x60 mm (WxH) Load 25 Kg Repeatability 40 microns |
Linear Actuator BEMA-CB136D BEMA-CB136D Stroke 100...1,050 mm Cross-section 136x78 mm (WxH) Load 32 Kg Repeatability 40 microns |

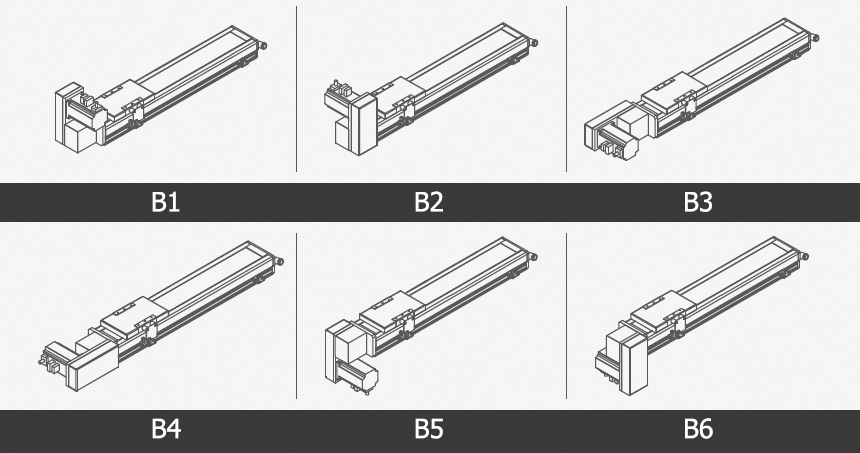

Configurations
