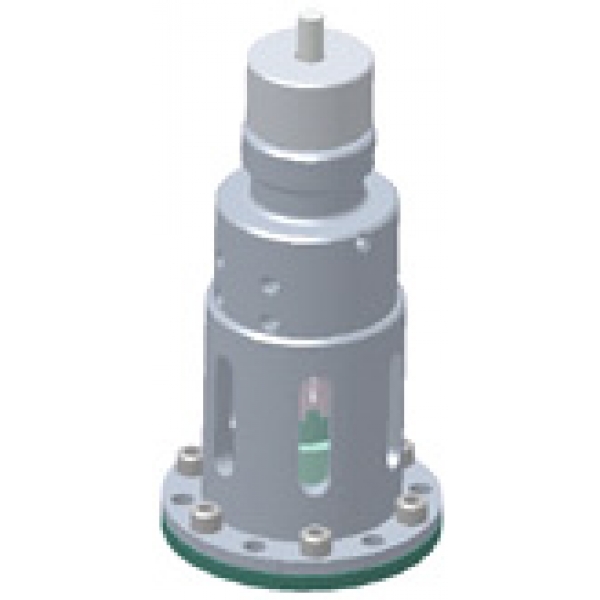

Linear actuator IF-075-25-10
I-Force linear actuator comprise of direct drive core-less and hysteresys-free linear brushless motor with integrated position sensing and bearings. They feature extremely high dynamic response and force linearity. For use in applications with force control and linear positioning.
Features:
- acceleration 10G
- stroking frequency above 10 Hz
- force control from grams to kilograms
- soft touch with programmable push/pull force
Applications
- die eject and bond head (die bond and flip chip
- stroking frequency above 10 Hz
- IC placement and testing
- high speed assembly and insertion
- micro-positioning

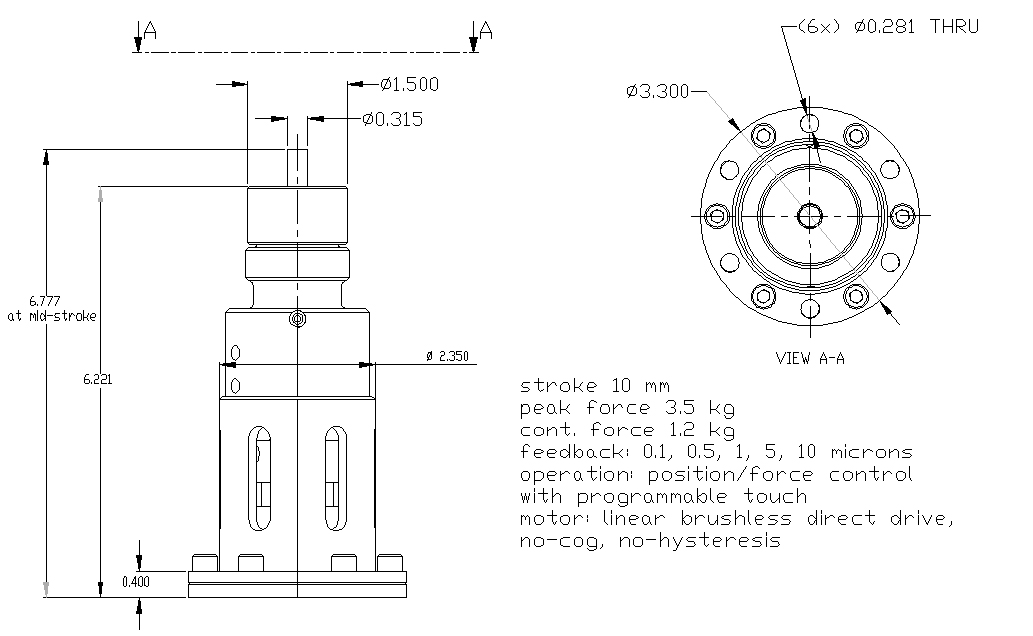

LINEAR ACTUATOR IF-75-25-10 (10 mm stroke)
.jpg)
 Linear actuator IF-075-25-10 IF-075-25-10
Peak force 75 N Cont. force 25 N Stroke 10 mm Encoder 1 micron |
 Linear actuator IF-260-80-25 IF-260-80-25
Peak force 260 N Cont. force 80 N Stroke 25 mm Encoder 1 micron |
 Linear actuator IF-460-160-25 IF-460-160-25
Peak force 450 N Cont. force 160 N Stroke 25 mm Encoder 1 micron |
|
Parameter |
MODEL I-FORCE | ||||
|
IF-75-25-10
|
|
|
|
||
|
Peak force |
N |
25 |
110 |
260 |
450 |
|
Continuous force |
N |
25 |
45 |
80 |
160 |
|
Stroke |
mm |
10 |
25 |
25 |
25 |
|
Position resolution |
micron |
1 |
|||
|
Accuracy |
micron |
3 |
|||
|
Peak current |
Amp |
6 |
|||
|
Continuous current |
Amp |
2 |
|||
