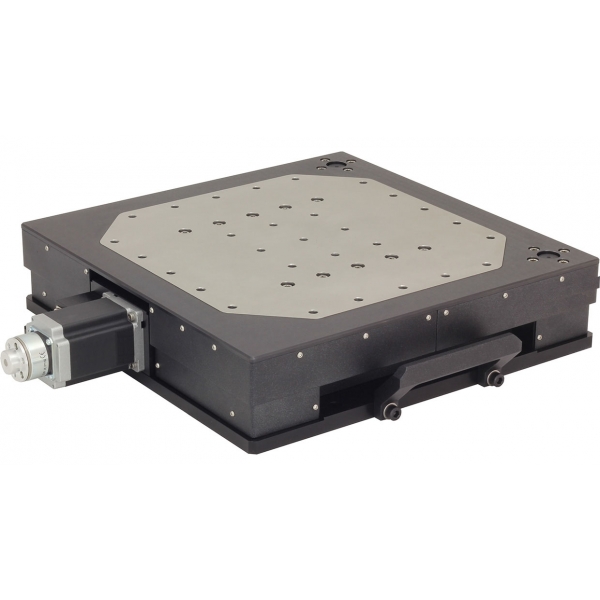

LIFT STAGE LSZ-400-20
Vertical Lift Stages LSZ Series offers precise vertical translation for payload elevation. A unique wedge design or direct drive motorized screw converts motor rotation into true vertical elevation of the platform. Precision bearings provide platform stiffness and stability while the screw mechanism assures positioning accuracy.
 Lift Stage MLVT-120-5 MLVT-120-5 Lift stroke 5 mm Load 12 Kg |
 Lift stage MLVT-70-13 MLVT-70-13 Lift stroke 13 mm Load 8 Kg |
 Lift stage MLVT-100-25 MLVT-100-25 Lift stroke 25 mm Load 10 Kg |
 Lift stage MLVT-40-13 MLVT-40-13 Lift stroke 13 mm Load 6 Kg |
 Lift Stage LSZ-12W Lift Stage LSZ-12W Lift stroke 12 mm Load 12 Kg |
 Lift Stage LSZ-25W Lift Stage LSZ-25W Lift stroke 25 mm Load 12 Kg |
 Lift Stage LSZ-8S Lift Stage LSZ-8S Lift stroke 8 mm Load 2-5 Kg |
 Lift stage MLVT-25J MLVT-25J Lift stroke 25 and 50 mm Load 12 Kg |
 Lift stage MLVT-15J MLVT-15J Lift stroke 15 mm Load 8 Kg |
|
Model |
LSZ-400-20
|
|
Stroke, mm |
20 |
|
Mechanism |
ball screw / wedge |
|
Resolution (1/8 step), micron |
0.5 |
|
Repeatability, micron |
2 |
|
Max speed, mm/sec |
4 |
|
Load capacity, kg |
200 |
|
Motor |
stepper, servo/encoder |
|
Stage weight, kg |
50 |
