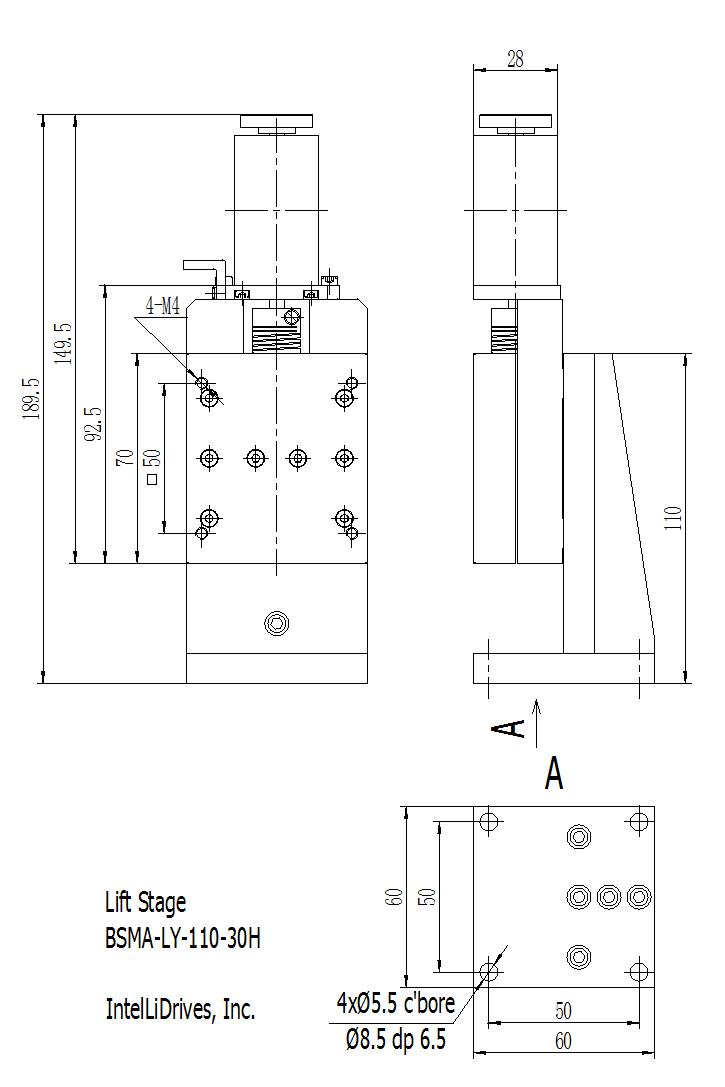

Lift Stage BSMA-LY-110H-30
Lift linear motorized modules integrate recirculating ball bearing system with a precision ball screw in a compact frame that meets the speed and precision requirements of modern production machinery. The internal runner blocks and carriages are driven by preloaded zero-clearance ball screw/nut system. These units achieve travel speeds of up to 20 mm/sec and a positioning repeatability of 5 microns when driven with rotary stepper or brushless servo motors.
 Lift Stage BSMA-140H-50 BSMA-LY-140H-50 Lift 50 mm Load 8 Kg |
Lift Stage BSMA-140H-100 BSMA-LY-140H-100 Lift 100 mm Load 8 Kg |
 Lift Stage BSMA-140H-200 BSMA-LY-140H-200 Lift 200 mm Load 8 Kg |
 Lift Stage BSMA-140H-300 BSMA-LY-140H-300 Lift 300 mm Load 8 Kg |
| Lift Stage BSMA-140H-400 BSMA-LY-140H-400 Lift 400 mm Load 5 Kg |
 Lift Stage BSMA-LY-110-50 Z-BSMA-LY-110-50 Lift 50 mm Load 5 Kg |
Lift Stage BSMA-LY-110-75 Z-BSMA-LY-110-75 Lift 75 mm Load 5 Kg |
|
Model |
BSMA-LY-110H-30
|
|
Stroke, mm |
30 |
|
Mechanism |
motorized ball screw |
|
Screw lead, mm |
1 |
|
Repeatability, micron |
5 |
|
Max speed, mm/sec |
10 (stepper) 20 (servo) |
|
Load capacity, kg |
3 |
|
Motor |
stepper, servo/encoder |
|
Stage weight, kg |
0.58 |
