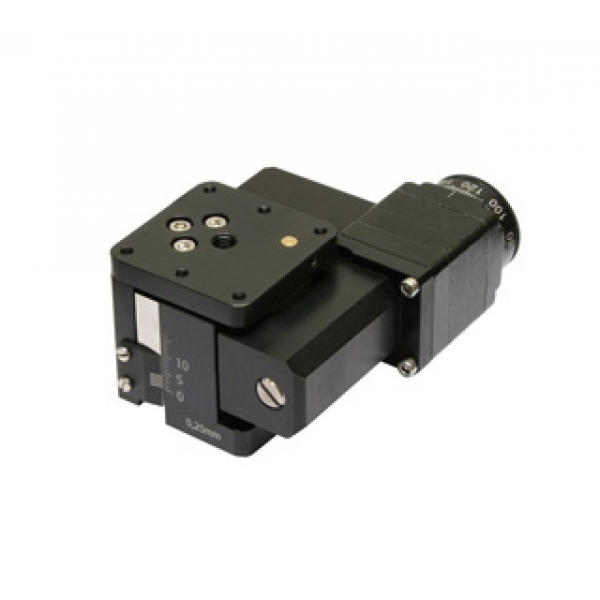

Lift stage MLVT-40-13
Vertical Lift Stages MLVT Series offers precise vertical translation for payload elevation. A unique wedge design or direct drive motorized screw converts motor rotation into true vertical elevation of the platform. Precision bearings provide platform stiffness and stability while the screw mechanism assures positioning accuracy.
 Lift Stage MLVT-120-5 MLVT-120-5 Lift stroke 5 mm Load 12 Kg |
 Lift stage MLVT-70-13 MLVT-70-13 Lift stroke 13 mm Load 8 Kg |
 Lift stage MLVT-100-25 MLVT-100-25 Lift stroke 25 mm Load 10 Kg |
 Lift Stage LSZ-12W Lift Stage LSZ-12W Lift stroke 12 mm Load 12 Kg |
 Lift Stage LSZ-25W Lift Stage LSZ-25W Lift stroke 25 mm Load 12 Kg |
|
Model |
|
MLVT-40-13
|
|
|
|
Stroke, mm |
5 |
13 |
13 |
25 |
|
Mechanism |
ball screw / wedge |
screw gear |
direct drive screw |
direct drive screw |
|
Lift translation mm/motor rev |
1:8 |
0.0166:1 |
1:1 |
1:1 |
|
Resolution (1/8 step), micron |
0.078 |
0.078 |
0.625 |
0.625 |
|
Repeatability, micron |
1 |
0.25 |
1 |
1 |
|
Max speed, mm/sec |
2 |
0.4 |
20 |
20 |
|
Load capacity, kg |
12 |
6 |
8 |
10 |
|
Motor |
stepper, servo/encoder |
stepper |
stepper |
stepper |
|
Stage weight, kg |
2.3 |
0.45 |
2.2 |
2.5 |
