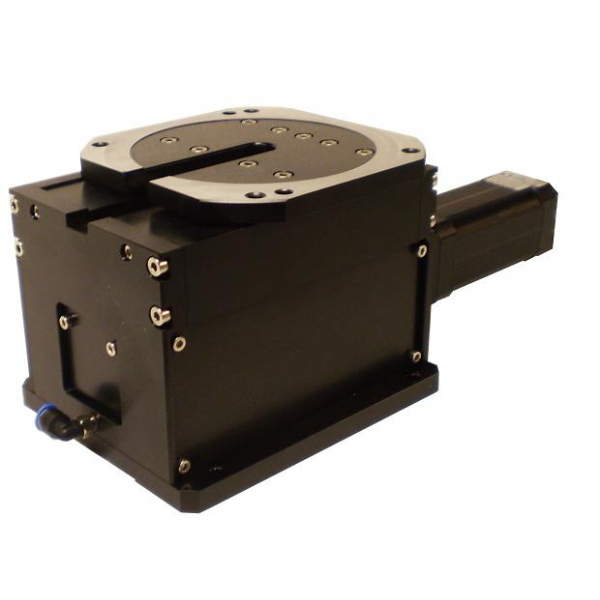

Lift Stage LSZ-25W
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.
Vertical Lift Stages LSZ-25W offers precise vertical translation for payload elevation. A unique wedge with motorized screw linear actuator converts motor rotation into true vertical elevation of the platform. Precision bearings provide platform stiffness and stability while the screw mechanism assures positioning accuracy.
Click Below Images To Enlarge
 Lift Stage MLVT-120-5 MLVT-120-5 Lift stroke 5 mm Load 12 Kg |
 Lift stage MLVT-70-13 MLVT-70-13 Lift stroke 13 mm Load 8 Kg |
 Lift stage MLVT-100-25 MLVT-100-25 Lift stroke 25 mm Load 10 Kg |
 Lift stage MLVT-40-13 MLVT-40-13 Lift stroke 13 mm Load 6 Kg |
 Lift Stage LSZ-12W Lift Stage LSZ-12W Lift stroke 12 mm Load 12 Kg |
|
Model |
|
LSZ-25W
|
|
Stroke, mm |
12 |
25 |
|
Mechanism |
lead screw / wedge |
lead screw / wedge |
|
Resolution (1/8 step), micron |
0.5 |
1 |
|
Repeatability, micron |
1 |
2 |
|
Max speed, mm/sec |
25 |
25 |
|
Load capacity, kg |
12 |
12 |
|
Motor |
stepper, servo/encoder |
stepper, servo/encoder |
|
Stage weight, kg |
2.5 |
3.0 |
