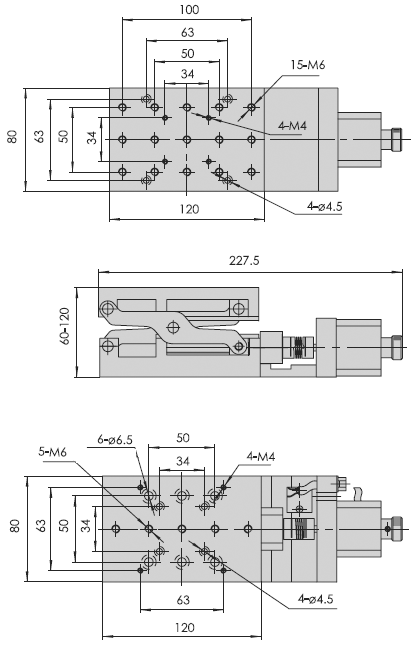

Elevation Platform MLVP-60
Motorized Elevation Platforms MLVP provide a rugged, height-adjustable platform for load elevation. Based on the pantograph or geared screw design these stages have travel stroke from 30 to 300 mm lifting loads up to 50 kg.
 Elevation Stage MLVP-120 MLVP-120 Lift stroke 120 mm Load 15 Kg |
 Elevation Stage MLVP-100 MLVP-100 Lift stroke 100 mm Load 50 Kg |
 Elevation Stage MLVP-300 MLVP-300 Lift stroke 300 mm Load 50 Kg |
 Elevation platform MLVP-200 MLVP-200 Lift stroke 200 mm Load 50 Kg |
 Elevation platform MLVP-30 MLVP-30 Lift stroke 30 mm Load 50 Kg |
|
Model |
MLVP-60 |
|
||||
|
Stroke, mm |
30 |
60 |
100 |
120 |
200 |
300 |
|
Mechanism |
screw |
pantograph |
screw |
pantograph |
screw |
screw |
|
Platform size WxL, mm |
500x300 |
120x80 |
180x120 |
220x140 |
220x140 |
400x200 |
|
Repeatability, micron |
5-10 |
|||||
|
Max speed, mm/sec |
5-10 |
|||||
|
Load capacity, kg |
100 |
15 |
50 |
15 |
15 |
50 |
|
Motor |
stepper NEMA23, NEMA34 |
|||||
|
Stage weight, kg |
35 |
1.5 |
12 |
2.5 |
18 |
24 |
