Compact package
and superior design

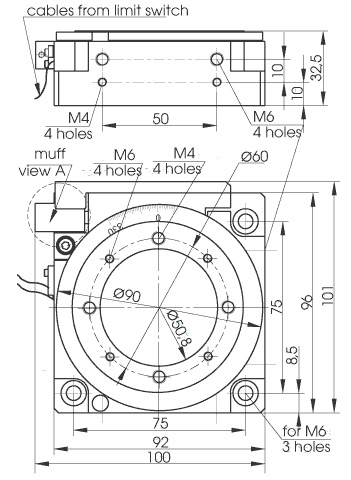

The RTHM-100
compact rotation stages are designed to rotate optical components and
small tooling in confined spaces, such as laser cavities, disk texturing
machines or manufacturing areas for fiber optical components and
semiconductor devices.
The lightweight low profile design incorporates anodized aluminum body
with pre-loaded ball bearings. This proprietary bearing design provides
smooth rotation with minimal wobble. A precision ground worm gear
produces consistent driving torque to the rotor and eliminates
variations in the motor current.
Drive
system and accurate
positioning
RTHM-100 stages feature an angular resolution up to 0.1 arc-sec, which
may be achieved with either DC Servo or stepper motors controls.
The stages are equipped with a reference home sensor. RTHM-100 stages
can run in continuous rotation mode and mounted horizontally or
vertically
Features
-
Zero backlash
-
Lightweight
-
Home sensor
-
High resolution
-
Unlimited rotation
-
High stability
-
Large center aperture
 |
